The whole set of shoe machine equipment infrared projection positioning laser module
Weight: 500g
Processing customization: Yes
Item number: HW635E5-27BD-4D3C
Model: HW635E5-27BD-4D3C
Type: Laser
Working material: semiconductor
Output type: power type
Transmission signal: single power supply type
Speed: High speed
Channel: Single channel
Output wavelength: 635 (nm)

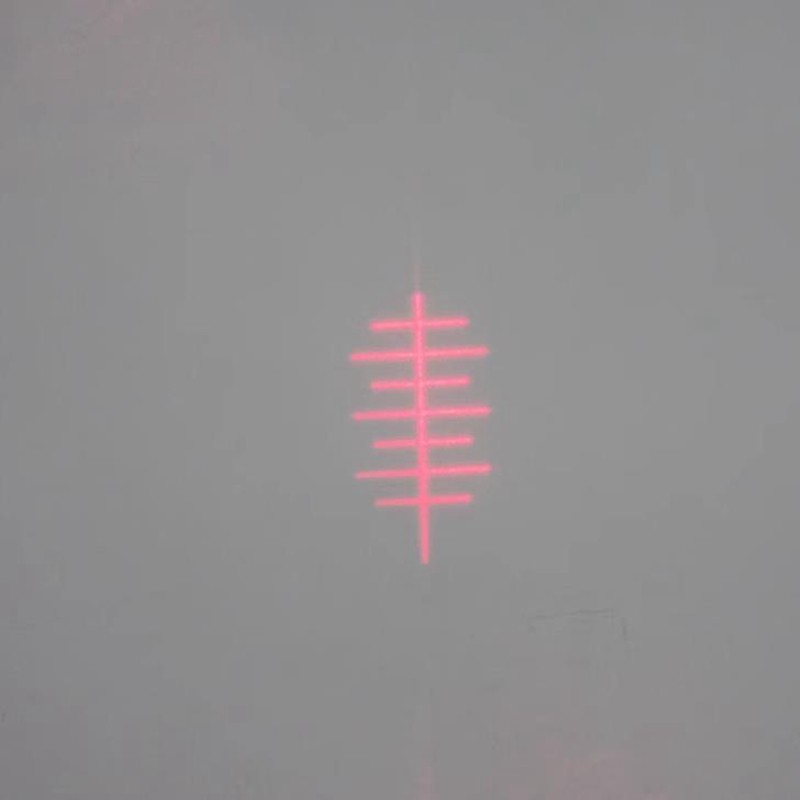

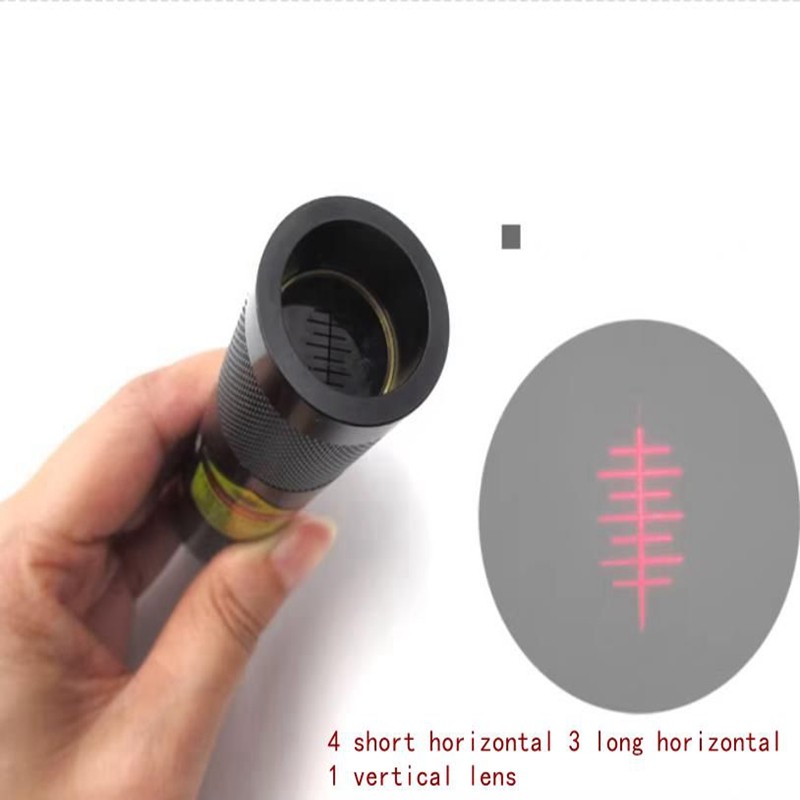

Four short horizontal, three long horizontal and one vertical positioning light
(Model HW635E5-27BD-4D3C)
A set includes: laser head + universal support +3V power supply
Short size: 15 mm vertical lines Short size: 30 mm horizontal lines Narrow spacing: 3.5 mm
25 cm:
four short horizontal lines length size: 20 mm Three long horizontal lines
length size: 27 mm Vertical lines length size: 54 mm horizontal line width interval: 7 mm
50 cm:
four short horizontal lines Short size: 17 mm Three long horizontal lines
Short size: 22 mm vertical lines Short size: 44 mm horizontal lines Narrow spacing: 5 mm
50 cm:
four short horizontal line length size: 32 mm Three long horizontal line
length size: 43 mm Vertical line length size: 86 mm horizontal line width interval: 10 mm
Output wavelength: 635nm (customizable)
Core power: 5mw (optional)
Operating voltage: DC 2.8V to 5.2V (customizable)
Working current: < 60mA
Dimensions: 27*120mm (customizable)
Installation height 0 m - 1 m can be used
Part of the application range: front side machine, napping machine,
automatic root loading machine, back heel molding machine, shoe upper molding machine,
midsole molding machine and other mechanical equipment to play the role of fixing line.
50 cm: four short horizontal lines Short size :17 meters Three long horizontal lines
Short size :22 mm vertical lines Short size :44 mm horizontal lines Narrow interval :5 mm
50 cm: four short horizontal line length size :32 mm Three long horizontal line
length size :43 mm Vertical line length size :86 mm horizontal line width interval :10 mm
Product customization size:
Conventional diameter 9*23mm, 10*30mm, 12*40mm, 16*70mm, 22*110mm,
26* 110mm, 40*110mm, other can be customized
Power:
0.5-500mw 1W 2W Other customizable
450 nm520nm532nm635nm650nm670nm685nm780nm wave length: 405 nm
808nm830nm 850nm 905nm980nm Blue violet blue green red Near infrared
Light spot:
One word line cross line dot circle right Angle font 7 horizontal 1
vertical grid parallel line one-dimensional more customizable
