Weight: 500g
Processing customization: Yes
Item number: 40 degrees /31 degrees 5000 points full star effect laser
Model: 40 degrees /31 degrees 5000 points full star effect laser
Type: Laser
Band range: visible light
Operation mode: continuous
Excitation mode: electric excitation type
Working material: semiconductor
Optical path: internal optical path
Output type: power type
Transmission signal: single power supply type
Speed: High speed
Channel: Single channel
40 degrees /31 degrees 5000 points full sky effect red laser
(Model HW6505000MTX100-16GD-40°-31°-RD01)
40 degrees /31 degrees 5000 points full sky effect green laser
(Model HW5205000MTX100-16GD-40°-31°-RD01)
40 degrees /31 degrees 5000 points full sky effect blue laser
(Model HW4505000MTX100-16GD-40°-31°-RD01)
Installation height: 0 m - 3 m can be used

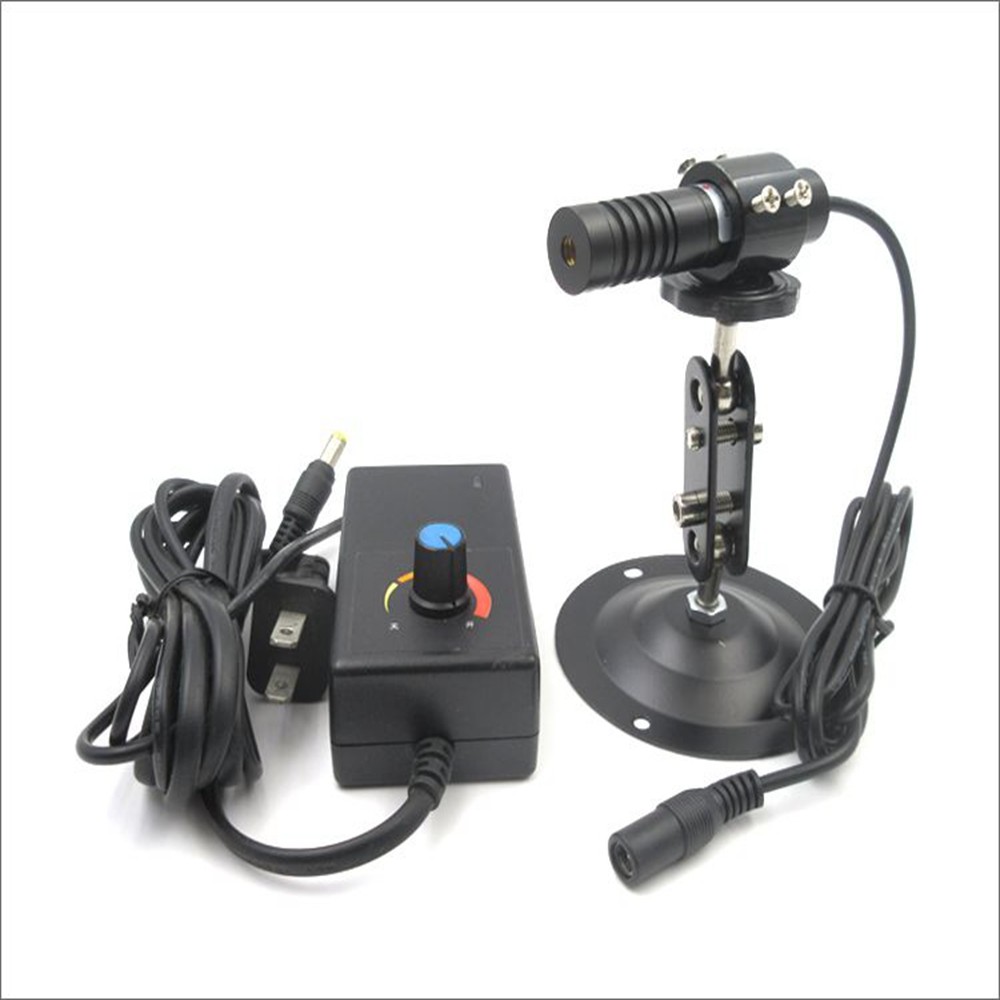

The whole set includes: laser module + universal support +1-3V adjustable power supply
Other parameters:
X direction: 40°
At 0.5 m, the length in the X direction is 364 mm
Y direction: 31°
At 0.5 m, the length in the Y direction is 277 mm
Wavelength: 650nm/520nm/450nm (optional)
Power: 100mw (optional)
Operating voltage: DC 2.8V to 5.2V (customizable)
Working current: < 500mA
Dimensions: 16*70mm (customizable)
Optical lens: Grating plate (imported from Germany)
Advantages:
◆ Light point is clear and bright, soft and not dazzling;
◆ The star light spot size can be adjusted to meet your different requirements;
◆ Imported laser diode direct light, high stability, can work 24 hours a day;
◆ Intelligent driver board with imported IC, wide range of power supply,
other voltages can be customized;
◆ The shell is aviation aluminum-plated insulating paint,
and the interior is filled with thermal silicone and AB adhesive, which can fully dissipate heat and prevent shock and fall.
◆ High temperature and corrosion resistant wire, suitable for all-weather environment;
◆ Wavelength, power, wire length, working distance, spot effect, etc.
can be customized according to customer requirements, you want, here!
