Specification: 3.6X9mm650nm1mW point
Installation mode: Insert
Wavelength: 650nm
Supply voltage: 2.8V~5.2V
Maximum output power: 1mW
Package size: Cylindrical (3.6mm diameter)
Number of ports: 1
Product series: Laser
Rated current: less than 35mA
Rated power: less than 1mW
Operating temperature: -10℃~+50℃
Module：S456501D
Type: Laser module
Product certification: in line with RoHS standards
Accessory type: Laser head
Model: S456501D

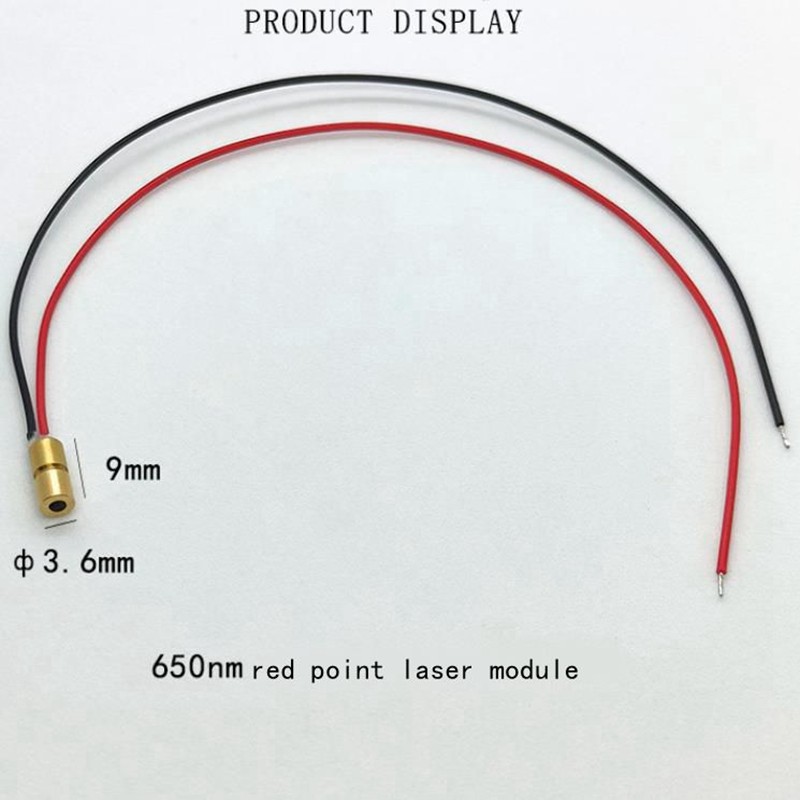

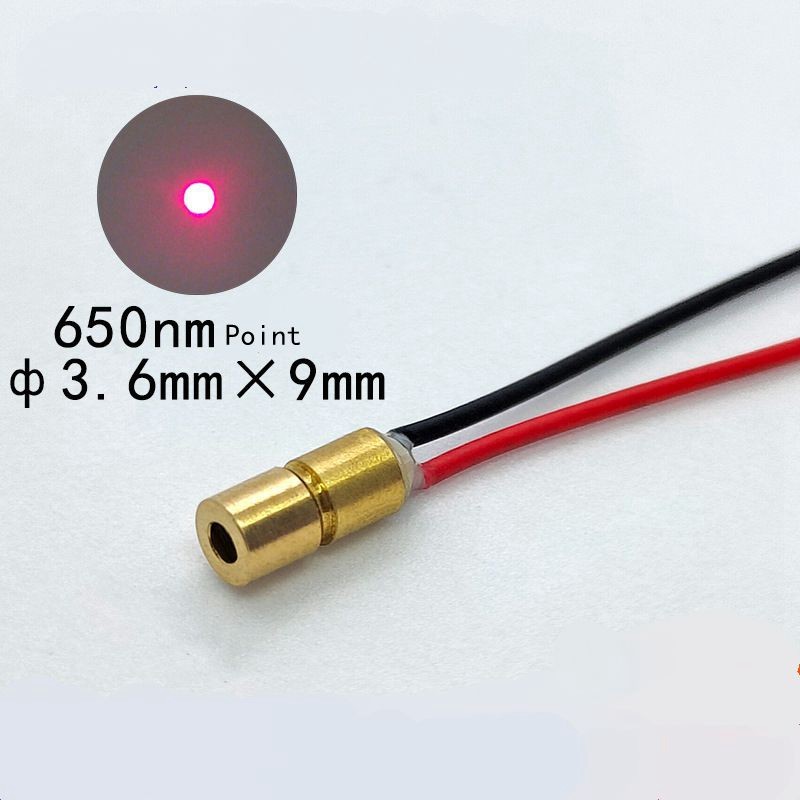

Size: Ø 3.6x9mm (other sizes can be customized)
Material:Copper (all metal shell)
Surface treatment/color:Bronze shell
Output wavelength: 650nm ± 10nm
Exit pupil power:<1mW (other powers can be customized)
Range:<50 meters (indoor environment, laser may be affected by ambient light interference, distance may vary)
Spot shape and size: Point light, ellipsoid (can be adjusted according to the distance requested by the customer for the best effect)
Focusing method: adjustable focus or fixed focus (optional, default to adjustable focus)
Circuit control: APC line
Working current: I<35mA
Working temperature: -10C~+50C
Storage temperature: -20 '℃~+70C
Service life: Continuous output/usage>10000 hours
Tail wire: 28 # red and black electronic wire about 15cm long (together with the power adapter,
equipped with a 1-meter-long DC female plug wire)
Security level: CLASS II
Packaging content: One laser
Usage: Can be used in industrial laser positioning, sights, laser flashlights, instrument equipment, medical equipment (health protection devices),
military, counterfeit identification and security, stage lighting, tools, USB drives, mobile phones, projection teaching flip pens,
temperature measuring (distance measuring) instruments, leveling instruments, marking instruments, level rulers, electronic production enthusiasts,
indoor and outdoor decoration and other products.
D3.6*9mm other models
Outpower : 0.3mw 0.5mw 1mw 10mw
