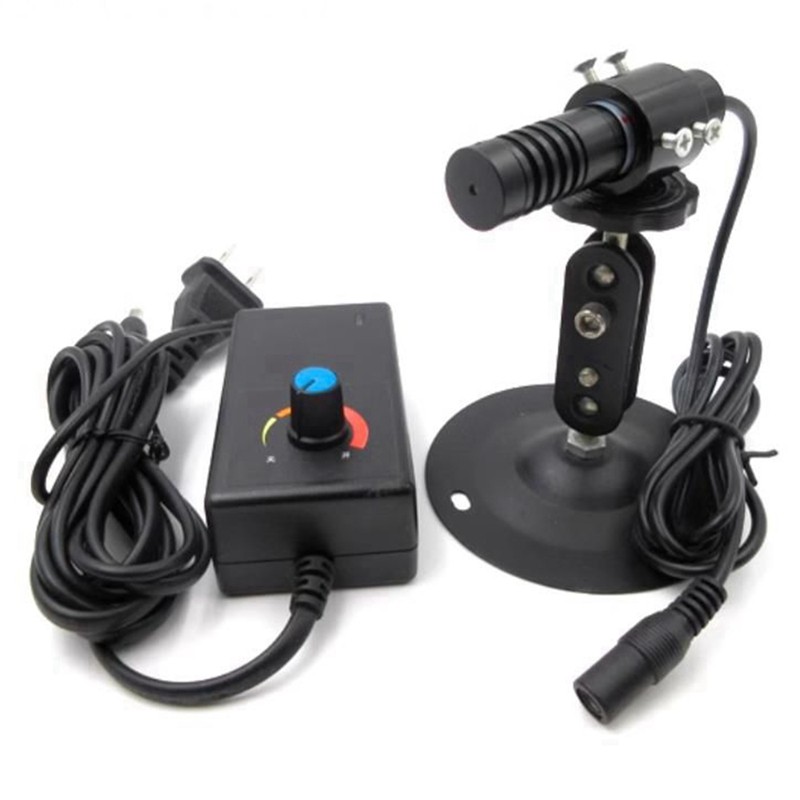

Product name:
40.6 degree long square frame red light viewfinder laser with cross effect
Model:
HW650CFKSZ100 - gd 40.6 ° 16-265
Wavelength, power
650nm/100mW
Product name:
40.6 degree long square frame with cross effect green light viewfinder laser
Model:
HW520CFKSZ100 - gd 40.6 ° 16-265
Wavelength, power
520nm/100mW
Product name:
40.6 degree long square frame with cross effect blue light viewfinder laser
Model:
HW450CFKSZ100 - gd 40.6 ° 16-265
Wavelength, power
450nm/100mW
Dot description:
At 0.5 m: Length (40.6°) : 370 mm
0.5 m: Width (31.5°) : 281 mm
0.5 m: Cross length (13°) : 115 mm
Installation height 0 m - 5 m can be used
Operating voltage: DC 2.8V to 5.2V (customizable)
Working current: < 500mA
Dimensions: 16*70mm (customizable)
Optical lens: Grating plate (imported from Germany)
Advantage
1 Clear and bright light The room is clearly visible
2 Light thickness can be adjusted to meet your different requirements
3 The shell is aviation aluminum-plated insulating paint with sufficient heat dissipation,
shock resistance, fall resistance and static resistance
4 Imported laser diode direct light stability is particularly high can work 24 hours a day
5 Intelligent driver board with imported IC can be 2.8-5.2V ultra-wide range of power supply
(other voltages can be customized)
6 High temperature and corrosion resistant DC plug cable suitable for all-weather environment
7 wavelength power wire length working distance spot effect
can be customized according to customer requirements you want here!
Product customization
Size: Conventional diameter 9*23mm, 10*30mm, 12*40mm,
16*70mm, 22*110mm, 26* 110mm, 40*110mm, other can be customized
Power: 0.5-500mw 1W 2W Other customizable
450 nm520nm532nm635nm650nm670nm685nm780nm wave length: 405 nm
808nm830nm 850nm 905nm980nm Blue violet blue green red Near infrared
Light spot: One word line cross line dot circle right Angle font 7 horizontal
1 vertical grid parallel line one-dimensional more customizable.
