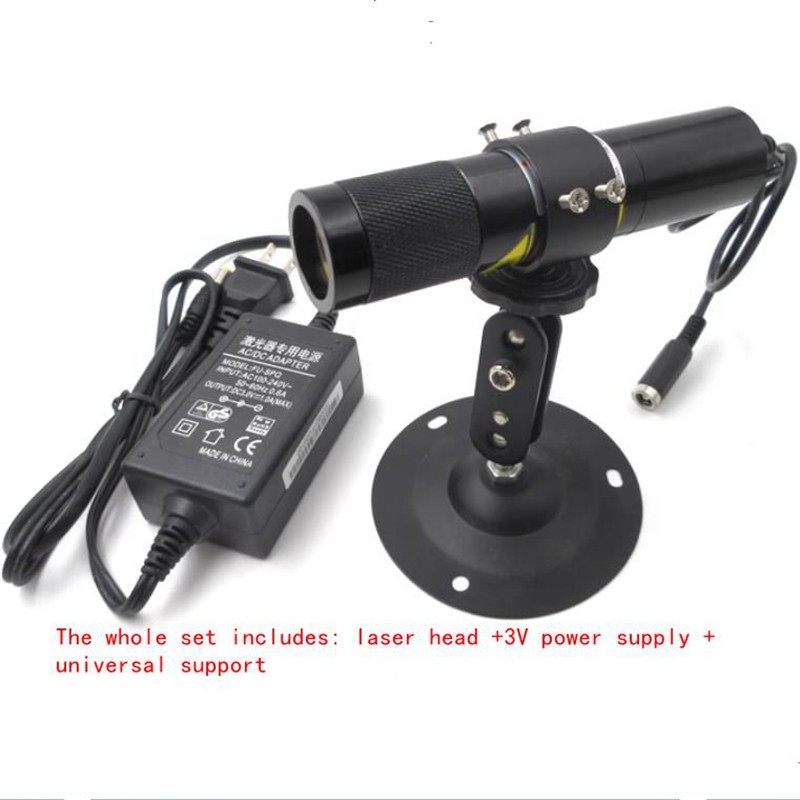

Right Angle marker laser module half cross positioning light L-type laser
- Product Item : HW660G100-27BD
- Category：
Custom laser module patterns
- Specifications: 635nm5mW red light,650nm100mW red light,520nm10mW Green light
- Transmission signal: single power supply type
-
-
Speed: High speed
Output type: power type
Operating voltage: DC 2.8V to 3.2V (customizable)
Working current: < 200mA
Dimensions: 27*120mm (customizable)
The new upgraded external adjustable structure line length can be adjusted
Product name model wavelength power
Red L-type spot laser HW635G5-27BD 635nm 5mW
Red light high brightness L-spot laser HW660G100-27BD 660nm 100mW
Green L-type spot laser HW525G10-BD27 520nm 10mW

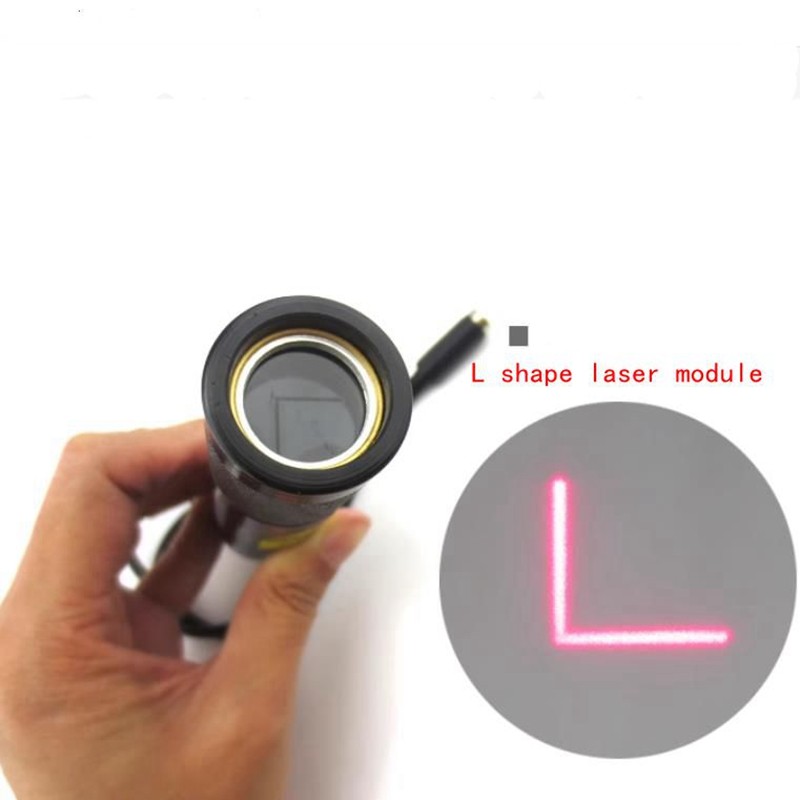

Spot description:
10 cm: L-shaped side length Minimum size: 14 mm
10 cm: L-shaped side length Maximum size: 22 mm
25 cm: L-shaped side length Minimum size: 20 mm
25 cm: L-shaped side length Maximum size: 35 mm
50 cm: L-shaped side length Minimum size: 30 mm
50 cm: L-shaped side length Maximum size: 58 mm
At 100 cm: L-shaped side length Minimum size: 48 mm
At 100 cm: L-shaped side length Maximum size: 100 mm
