Excitation mode: electric excitation type
Working material: semiconductor
Optical path: internal optical path
Output type: power type
Transmission signal: single power supply type
Speed: High speed
Channel: Single channel
Output wavelength: 650/520/450 (nm)
Name Model Power/wavelength
3 parallel line effect red laser HW6503PXX100-16GD 650nm/100mW red light
3 parallel line effect green laser HW5203PXX50-16GD 520nm/50mW green light
3 parallel line effect blue laser HW4503PXX100-16GD 450nm/100mw blue light
At 50 cm: the line length is 27.6 cm, the width of 3 parallel lines is 5.6 cm, and the line distance is 2.8 cm
At 100 cm: The line length is 55.2 cm, the width of 3 parallel lines is 11.2 cm, and the line distance is 5.6 cm
The line is thin and uniform, and the collimation and stability are very high.
The installation height of 0 m - 5 m can be used
Operating voltage: DC 2.8V to 5.2V (customizable)
Working current: < 500mA

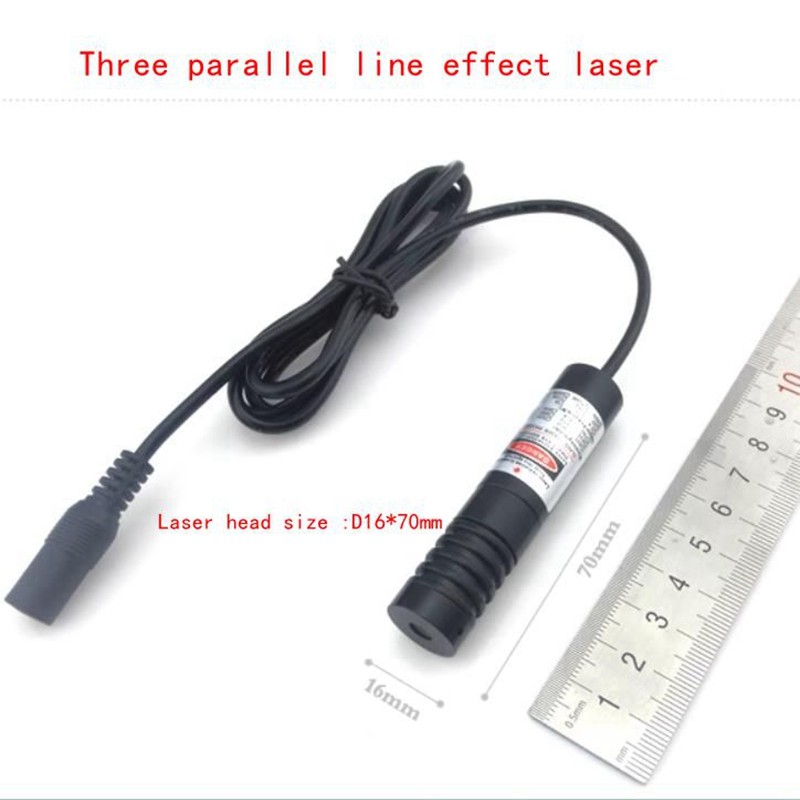

Dimensions: 16*70mm (customizable)
Optical lens: Grating plate (imported from Germany)
Lens Angle: 31 degrees

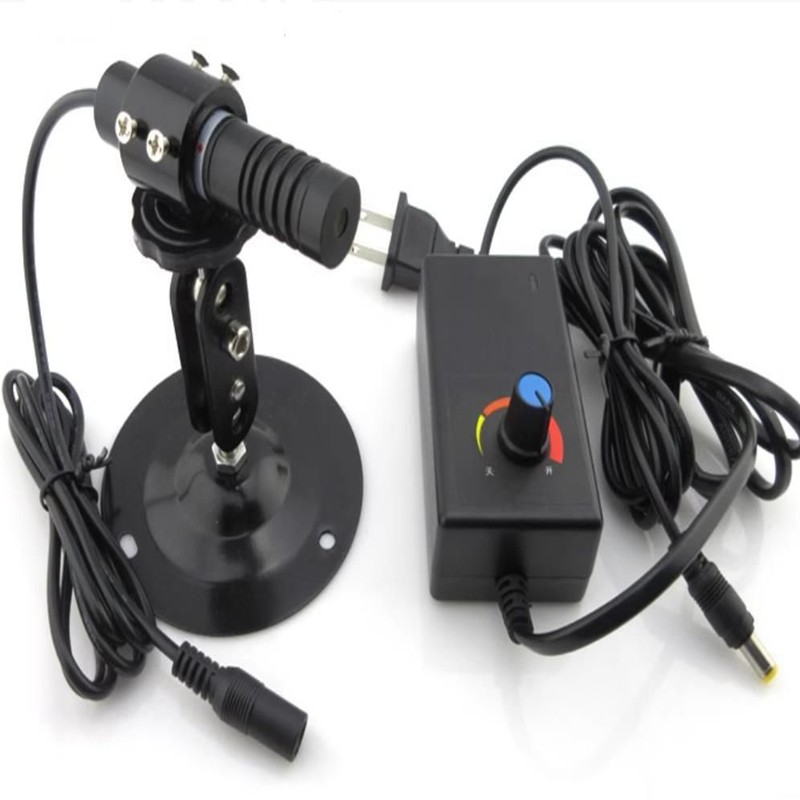

Accessories: 1-3V adjustable power supply + universal support
1 High brightness clear and bright, soft and not dazzling
2 The light size can be adjusted to meet your different requirements
3 The shell is aviation aluminum-plated insulating paint,
which can not only fully heat dissipation but also anti-shock, anti-fall and anti-static
4 Imported laser diode direct light stability is particularly high can be opened 24 hours a day
5 Intelligent driver board with imported IC can be 2.8-5.2V
ultra-wide range of power supply (other voltages can be customized)
6 High temperature and corrosion resistant DC plug
cable suitable for all-weather environment
7 wavelength power wire length working distance spot effect
can be customized according to customer requirements you want here!

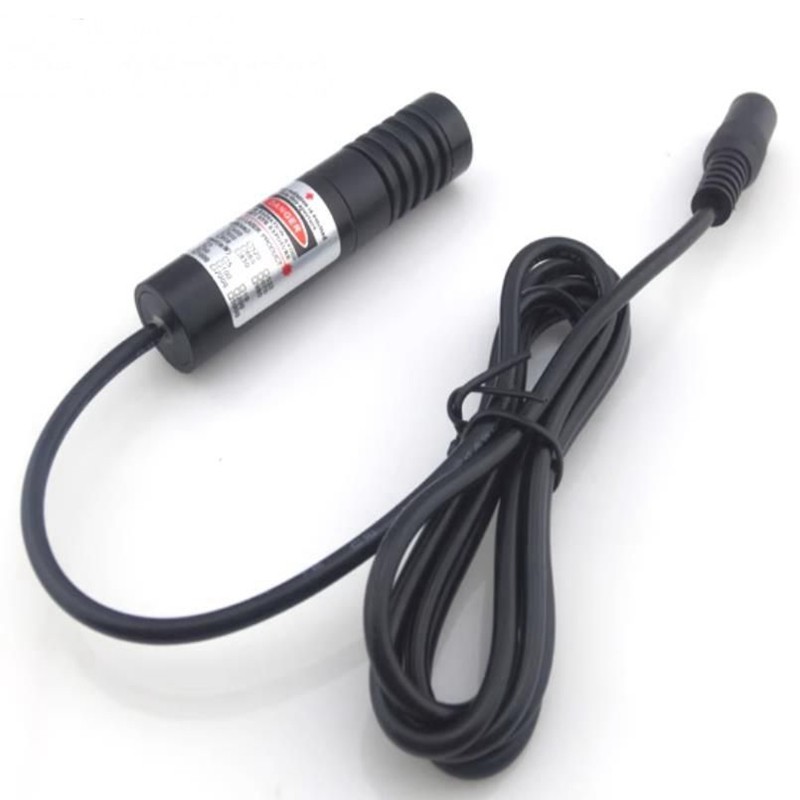

High quality high temperature plug wire length 1.2m (can be customized length)
The interior is filled with heat-dissipating silicone and
AB adhesive to fully dissipate heat and withstand shock and fall.
At 50 cm: the line length is 27.6 cm, the width of 3 parallel lines is 5.6 cm, the line distance is 2.8 cm
At 100 cm: the line length is 55.2 cm, the width of 3 parallel lines is 11.2 cm, the line distance is 5.6 cm
Product customization Size:
Conventional diameter 9*23mm, 10*30mm, 12*40mm, 16*70mm,
22*110mm, 26* 110mm, 40*110mm, other can be customized
Power: 0.5-500mw 1W 2W Other customizable
wave length: 450nm520nm532nm635nm650nm670nm685nm780nm
405 nm 808nm830nm 850nm 905nm980nm Blue violet blue green red Near infrared
