Installation mode: Insert
Wavelength: 650nm
Supply voltage: 2.8V~5.2V
Maximum output power: 5mW
Number of ports: 1
Product series: Laser
Rated current: less than 40mA
Rated power: less than 5mW
Type: Laser module
Accessory type: Laser head
Model: S456505D
Operating temperature: -10℃~+50℃
Item number
Line width 1 (mm)
Product model: RPS456505D
Material: Aviation aluminum (all metal shell)
Surface treatment/color: black, surface insulation oxidation mist black treatment
Output wavelength: 650nm ± 10nm (other wavelengths can be customized: 520nm, 650nm, 780nm)
Spot shape and size: Point light, ellipsoid
(can be adjusted according to the distance requested by the customer for the best effect)

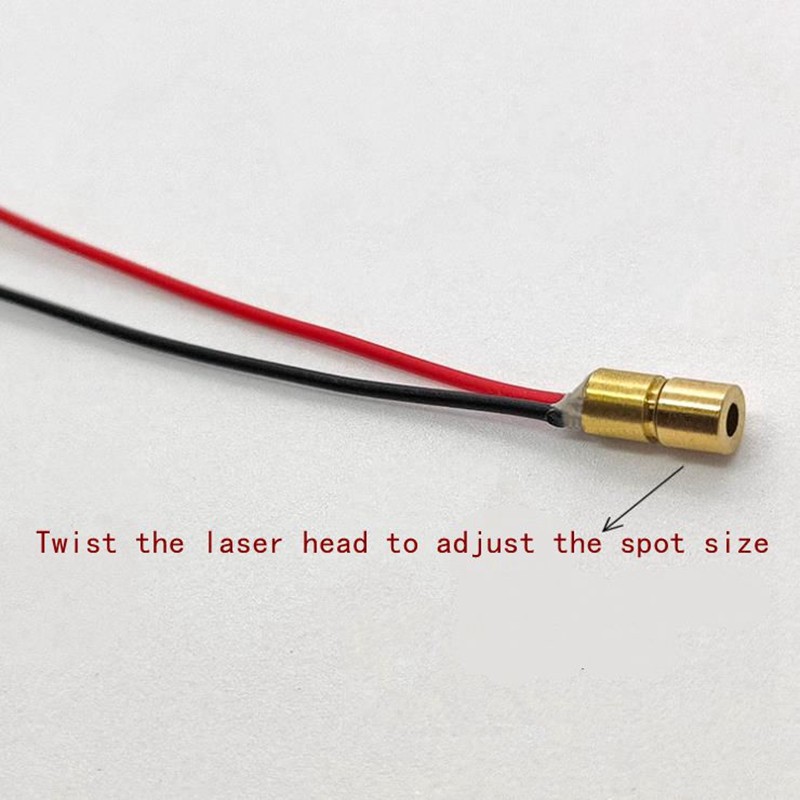

Focusing method: adjustable focus or fixed focus (optional, default to adjustable focus)
Circuit control: APC line
Exit pupil power:<5mW (other powers can be customized)
Range:<100 meters (indoor environment, laser may be affected by ambient light interference, distance may vary)
Working voltage: 2.8~5.2VDC
Working current: I<40mA
Working temperature: -10C~+50C
Storage temperature: -20 '℃~+70C
Service life: Continuous output/usage>10000 hours

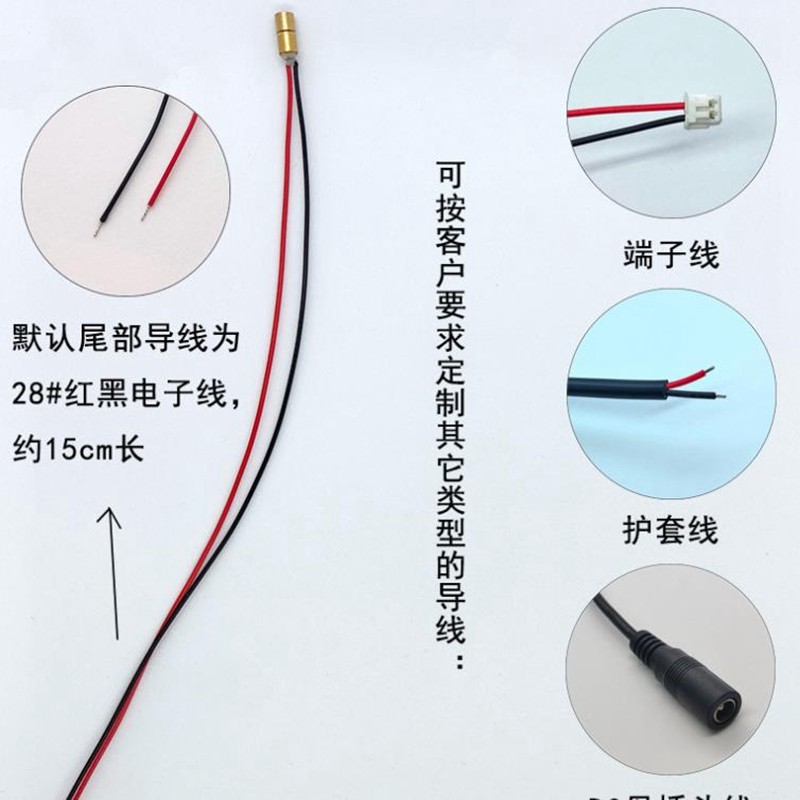

Tail wire: 28 # red and black electronic wire about 15cm long
(together with the power adapter, equipped with a 1-meter-long DC female plug wire)
Security level: CLASS IIIA
Packaging content: One laser
Usage: Can be used in industrial laser positioning, sights, laser flashlights,
instrument equipment, medical equipment (health protection devices),
military, counterfeit identification and security, stage lighting, tools, USB drives, mobile phones, projection teaching flip pens,
temperature measuring (distance measuring) instruments, leveling instruments, marking instruments, level rulers,
electronic production enthusiasts, indoor and outdoor decoration and other products.

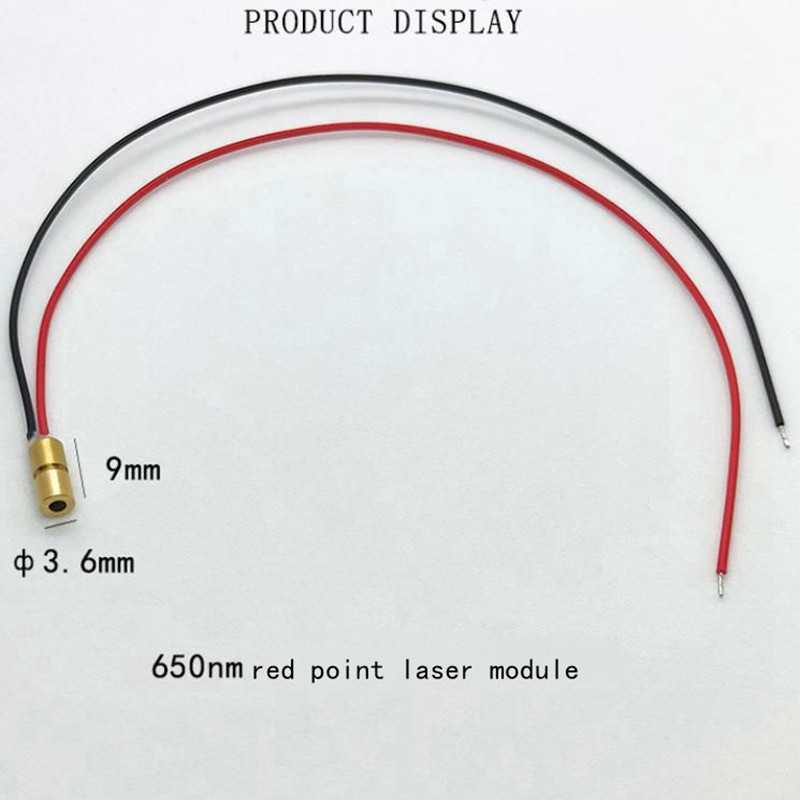

D3.6*9mm other models
Outpower : 0.3mw 0.5mw 1mw 10mw
