Optical path: internal optical path
Output type: power type
Transmission signal: single power supply type
Speed: High speed
Channel: Single channel
Spot description:
The diameter of the large circle is in a ratio of 1:2 to the irradiation distance, such as:
The installation height is 1 meter, and the diameter of the circle is about 0.5 meters
The installation height is 5 meters, and the diameter of the circle is about 2.5 meters
The circle is a perfect circle, the line is thin and uniform, and the stability is very high
Installation height 0 m - 10 m can be used

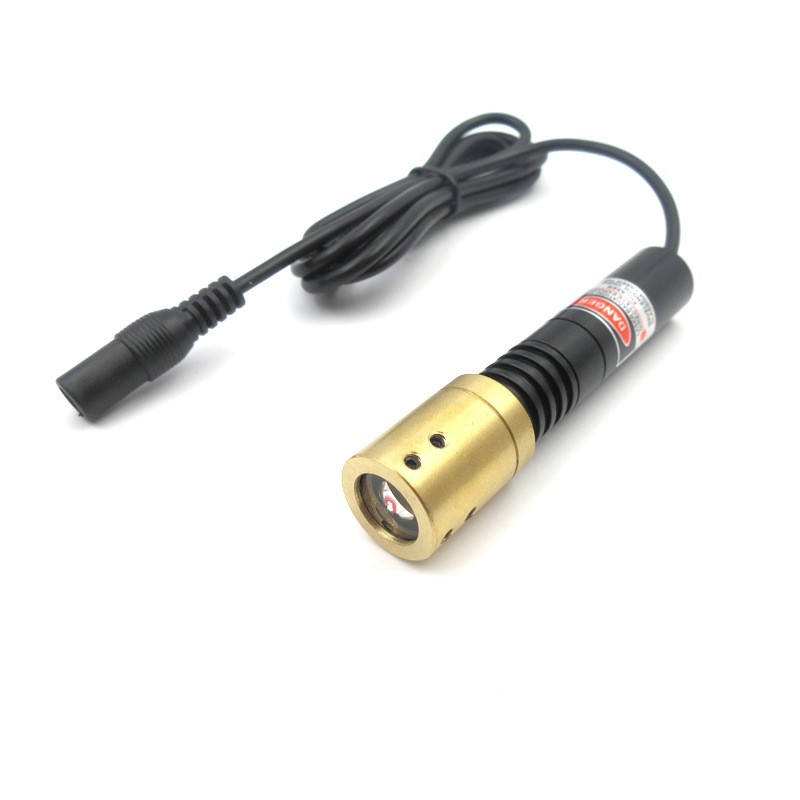

Lens Angle 28 degrees large circle laser module
The complete set includes: laser + power adapter + universal bracket
Note: Different wavelength and power will be configured with the corresponding power adapter
The diameter of the large circle is 1:2 in proportion to the irradiation distance.
The diameter of the circle is about 0.5 meters. The diameter of the circle is about 2.5 meters. The diameter of the circle is about 0.5 meters
28-degree red light large circle laser
HW639AY220-16GD-28°
639nm/220mW/≤300mA
1-3V adjustable power supply + universal support
28 degree green light large circle laser
HW520AY150-16GD-28°
520nm/150mW/≤800mA
1-12V adjustable power supply + universal support
28-degree blue large circle laser
HW450AY500-16GD-28°
450nm/500mW/≤600mA
1-12V adjustable power supply + universal support
The diameter of the large circle is proportional to the irradiation distance of 1:2
The installation height is 1 meter, and the diameter of the circle is 0.5 meters
The installation height is 5 meters, and the diameter of the circle is about 2.5 meters
