50 cm: The length of the cross and vertical lines is 18.5 cm, and the diameter of the circle is 9.15 cm
100 cm: The length of the cross and vertical lines is 37 cm, and the diameter of the circle is 18.3 cm
150cm: The length of the cross and vertical lines is 55.5 cm, and the diameter of the circle is 27.45 cm
The line is thin and uniform, the collimation and stability are very high, and the installation height can be used from 0 meters to 5 meters
Operating voltage: DC 2.8V to 5.2V (customizable)
Working current: < 500mA

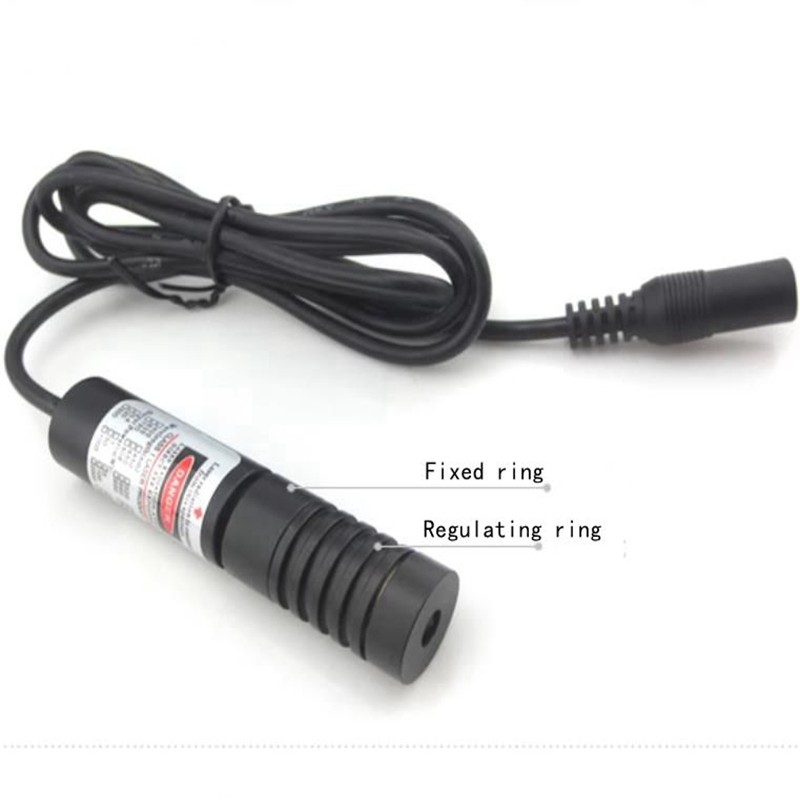

Dimensions: 16*70mm (customizable)
Optical lens: Grating plate (imported from Germany)
Circle Angle: 10.5 degrees
Cross Angle: 21 degrees
1 Ultra-high brightness for indoor and outdoor use
2 The light is clear and bright, soft and not dazzling
3 Line width can be adjusted to meet your different requirements
4 The shell is aviation aluminum-plated insulating paint, which can not only fully heat dissipation,
but also anti-shock, anti-fall and anti-static
5 Imported laser diode direct light stability is particularly high can be opened 24 hours a day
6 Intelligent driver board with imported IC can be 2.8-5.2V ultra-wide range of power supply
(other voltages can be customized)
7 High temperature and corrosion resistant DC plug cable suitable for all-weather environment
8 wavelength power wire length working distance spot effect can be customized
according to customer requirements you want here!
