Dot laser module

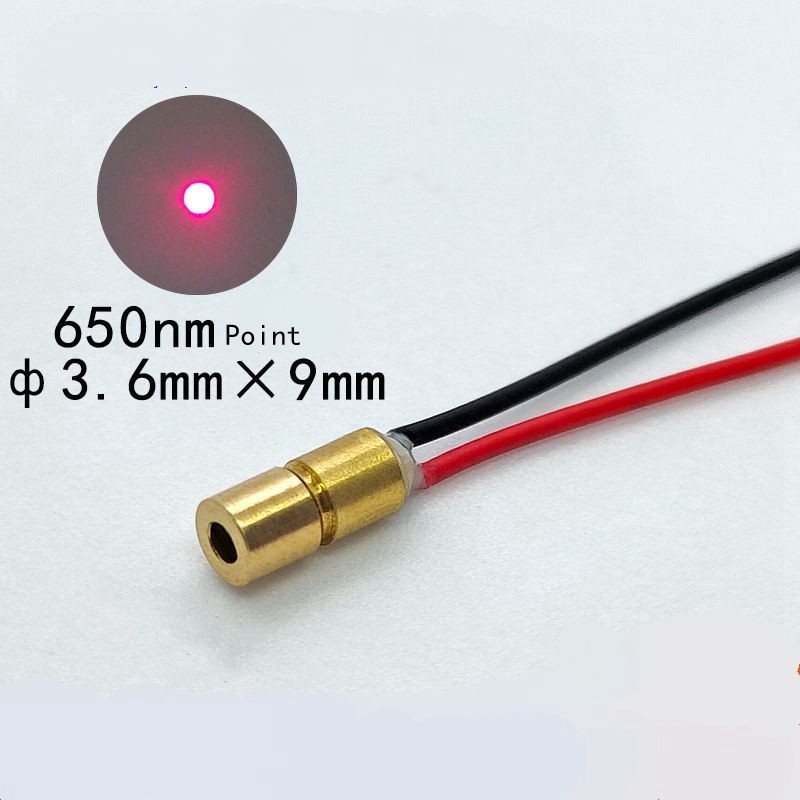

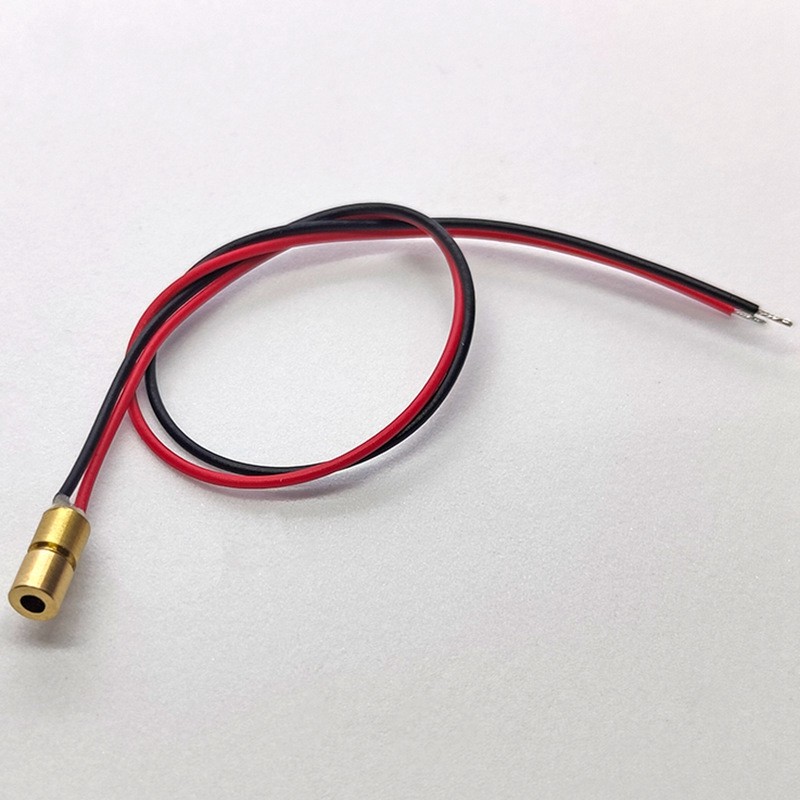

3.6X9mm650nm 0.3mw red laser module ultra-small size laser light calibration laser

3.6X9mm650nm 0.3mw red laser module ultra-small size laser light calibration laser

Product Item : RP456503D
Category： Dot laser module
Specification: 3.6X9mm650nm0.3mW point
Package size: Cylindrical (3.6mm diameter)
Product certification: in line with RoHS standards
Size: Ø 3.6x9mm (other sizes can be customized)
INQUIRY EMAIL

Material:Copper (all metal shell)
Surface treatment/color:Bronze shell
Output wavelength: 650nm ± 10nm
Exit pupil power:<0.3mW (other powers can be customized)
Range:<20 meters (indoor environment, laser may be affected by ambient light interference, distance may vary)
Spot shape and size: Point light, ellipsoid (can be adjusted according to the distance requested by the customer for the best effect)
Focusing method: adjustable focus or fixed focus (optional, default to adjustable focus)
Circuit control: APC line
Working current: I<25mA
Working temperature: -10C~+50C
Storage temperature: -20 '℃~+70C
Service life: Continuous output/usage>10000 hours

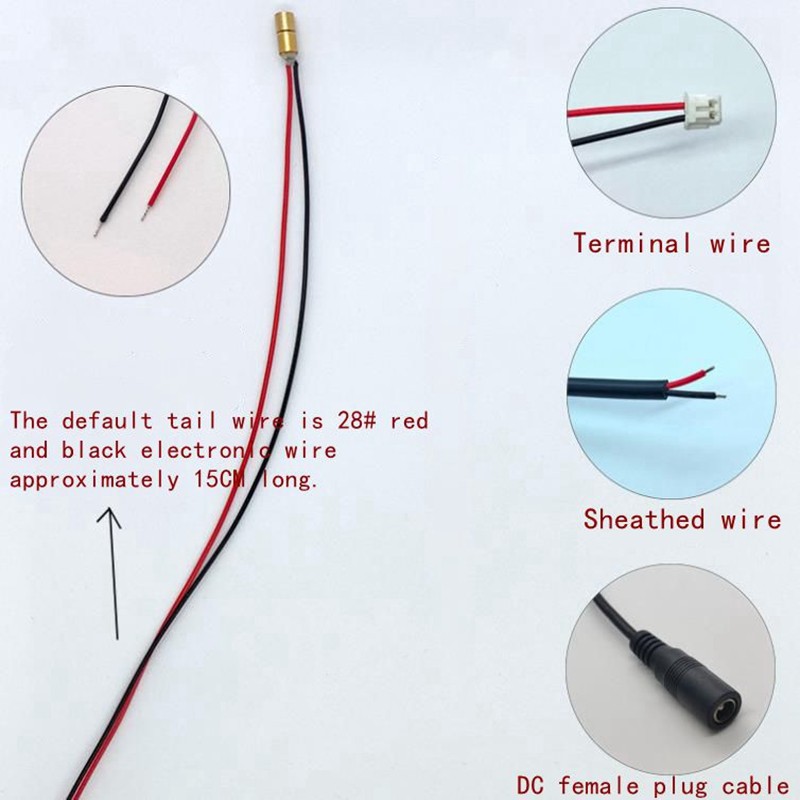

Tail wire: 28 # red and black electronic wire about 15cm long (together with the power adapter,

equipped with a 1-meter-long DC female plug wire)

Security level: CLASS I
Packaging content: One laser

Usage: Can be used in industrial laser positioning, sights, laser flashlights, instrument equipment,

medical equipment (health protection devices), military, counterfeit identification and security, stage lighting, tools,

USB drives, mobile phones, projection teaching flip pens, temperature measuring (distance measuring) instruments,

leveling instruments, marking instruments, level rulers, electronic production enthusiasts,

indoor and outdoor decoration and other products.

D3.6*9mm other models
Outpower : 0.3mw 0.5mw 1mw 10mw
