Product details:
Wavelength: 635
Weight: 500g
Model :HW635F5-27BD
Power :5mW
Voltage: 5V
Operating temperature :-10--+60°C
Wavelength: 635nm
Size: 27x120mm
Storage temperature: -40-+80PC
The interior is filled with heat-dissipating silicone and AB adhesive
to fully dissipate heat and withstand shock and fall

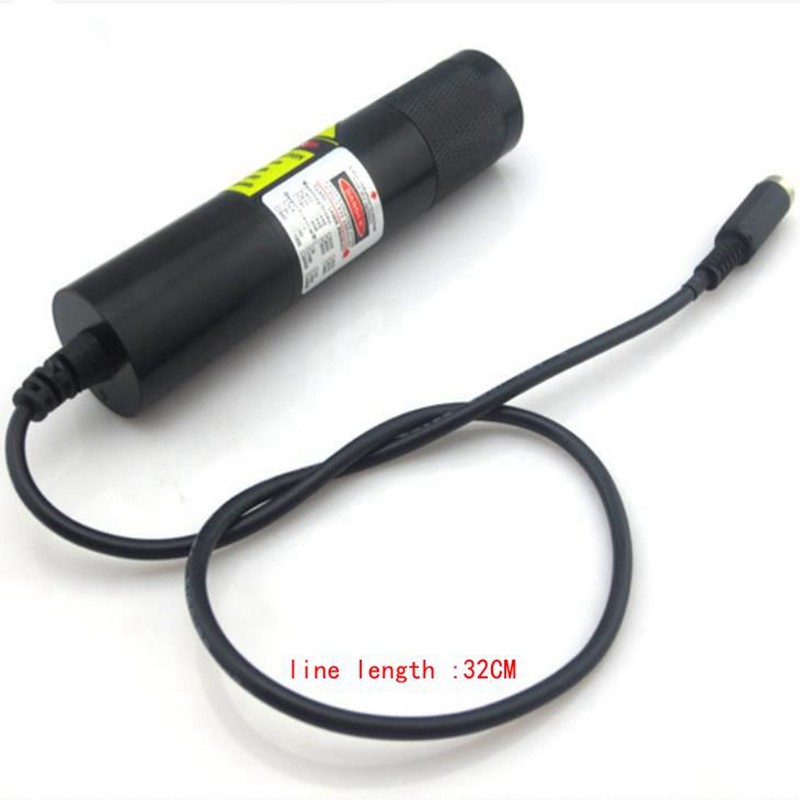

High temperature plug wire length 32cm
1. Wavelength size Working voltage working distance output power spot mode wire length and
other parameters can be customized according to customer needs
2. CE FDA ROSH certification
3. Intelligent feedback control circuit high transmittance Optical system low power consumption
high efficiency optical power output performance stable consistency good long service life
4. Small structure and easy installation can work without occupying space

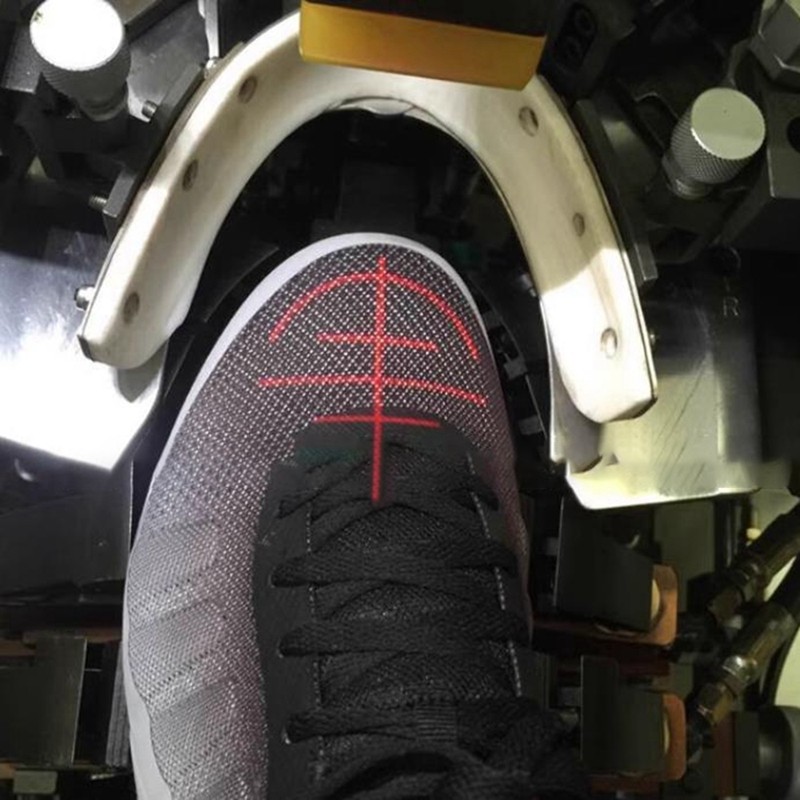

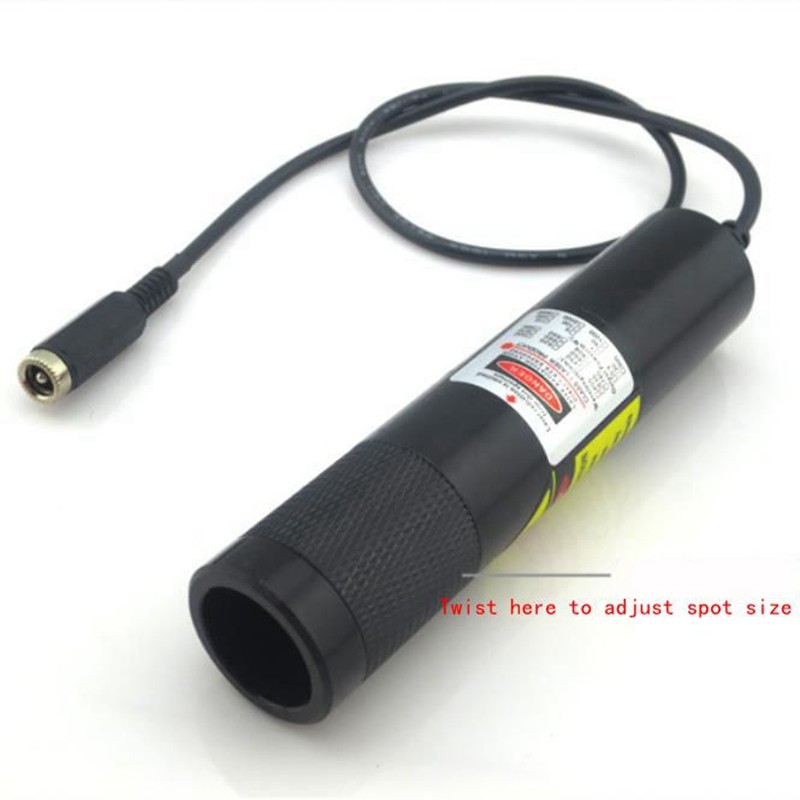

The new upgraded external mode structure has an adjustable font size
25 cm: From top to bottom horizontal line minimum size: 12.5 mm /21.5 mm /12.5 mm vertical line minimum size: 29 mm
25 cm: From top to bottom horizontal line longest size: 21 mm /35 mm /21 mm vertical line longest size: 46 mm
50 cm: From top to bottom horizontal line minimum size: 20 mm /33 mm /20 mm vertical line minimum size: 44 mm
50 cm: From top to bottom horizontal line maximum size: 34 mm /58 mm /34 mm vertical line maximum size: 77 mm
Installation height 0 m - 1 m can be used
Product customization
Size: Conventional diameter 9*23mm, 10*30mm, 12*40mm, 16*70mm,
22*110mm, 26* 110mm, 40*110mm, other can be customized
Power: 0.5-500mw 1W 2W Other customizable
450 nm520nm532nm635nm650nm670nm685nm780nm wave length: 405 nm
808nm830nm 850nm 905nm980nm Blue violet blue green red Near infrared
