Weight: 500g
Type: Laser
Band range: visible light
Working material: semiconductor
Output type: power type
Transmission signal single: power supply type
Speed: High speed
Channel: Single channel
Name:
33.18 degrees 5 ring effect red laser
Model:
HW6505YH100 - gd 33.18 ° 16-120
Wavelength, power
650nm/100mW
Name:
33.18 degrees 5 ring effect green laser
Model:
HW5205YH100 - gd 33.18 ° 16-120
Wavelength, power :520nm/50mW
Model:
HW4505YH100 - gd 33.18 ° 16-120
Wavelength, power
450nm/100mW
Outer circle Angle: 33.18° Inner circle Angle: 6.6°
At 0.5 m, the outer circle is 298 mm in diameter
At 0.5 m, the inner circle is 58 mm in diameter
At 0.5 m, the spacing between the rings is 30 mm
Operating voltage: DC 2.8V to 5.2V (customizable)
Working current: < 500mA

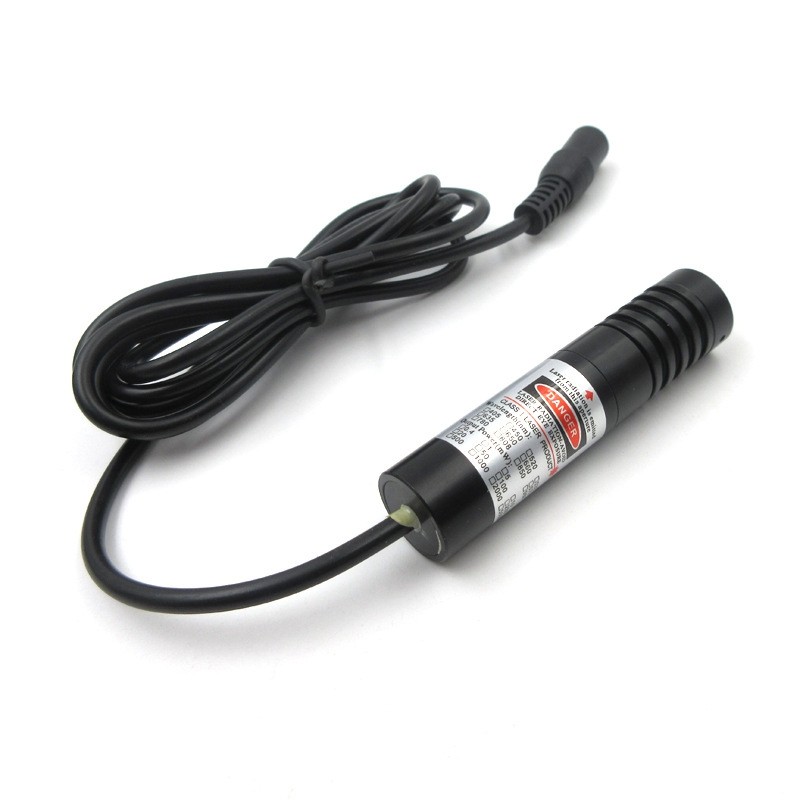

Dimensions: 16*70mm (customizable)
Optical lens: Grating plate (imported from Germany)
Advantages:
◆ Light is clear and bright, soft and not dazzling;
◆ Light thickness can be adjusted to meet your different requirements;
◆ The shell is aviation aluminum-plated insulating paint,
which can not only fully dissipate heat, but also anti-shock, anti-fall and anti-static;
◆ Imported laser diode direct light, especially high stability, can be open 24 hours a day;
◆ Intelligent driver board with imported IC,
2.8-5.2V ultra-wide range of power supply (other voltages can be customized);
◆ High temperature and corrosion resistant DC plug wire,
suitable for all-weather environment;
◆ Wavelength, power, wire length, working distance,
spot effect can be customized according to customer requirements, you want, here are all！
