Lens Degree:7.88°
Light Spot Effect:
X direction: 7.88°
At 0.5 meters, the length in the X direction is 69 mm
Y direction: 2.6° At 0.5 m, the length in the Y direction is 23 mm
Wavelength, Output Power, Voltage and Size Customizable
Can customize 450nm 100mw Blue light, same price as 520nm 50mw Green light

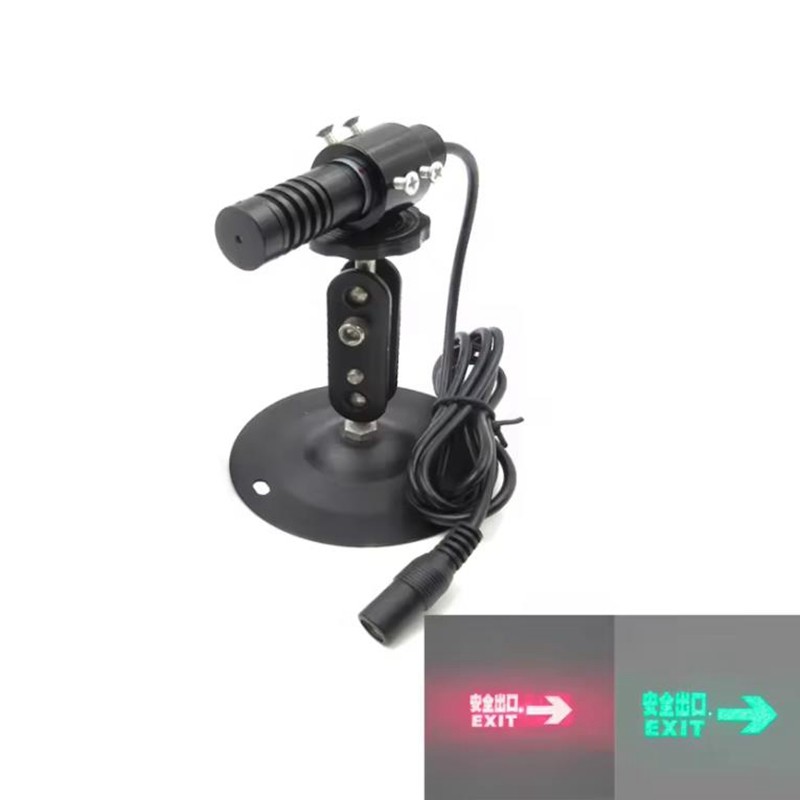

7.88 degree EXIT Safety exit Red laser with arrow effect
X direction :7.88°
At 0.5 meters, the length of the direction is 69 millimeters
Y direction :2.6°
At 0.5 m, the length in the Y direction is 23 mm
2.86 degrees HELP red laser with circle effect
At 0.5 m, the circle is 25 mm in diameter
Product customization：

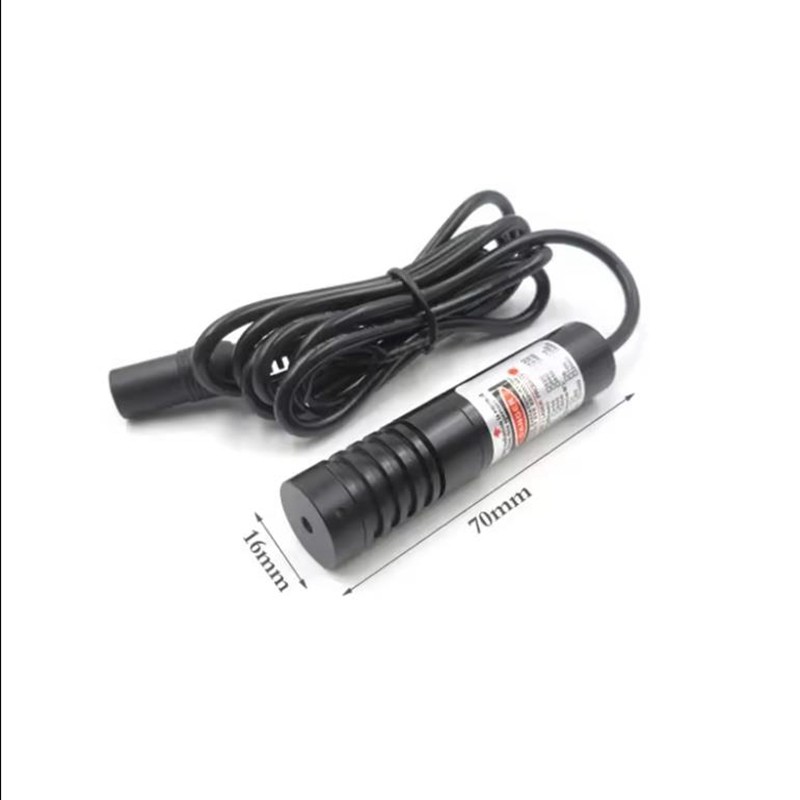

Size: Conventional diameter 9*23mm, 10*30mm, 12*40mm,
16*70mm, 22*110mm, 26* 110mm, 40*110mm, other can be customized
Power: 0.5-500mw 1W 2W Other customizable
Wave length：
405nm 450nm 520nm 532nm 635nm 650nm 670nm 685nm 780nm
808nm 830nm 850nm 905nm 980nm Blue violet blue green red near infrared
Light Spot:
One word line cross line point circle right Angle font 7 horizontal 1 vertical grid parallel line one dimension
More customizable
