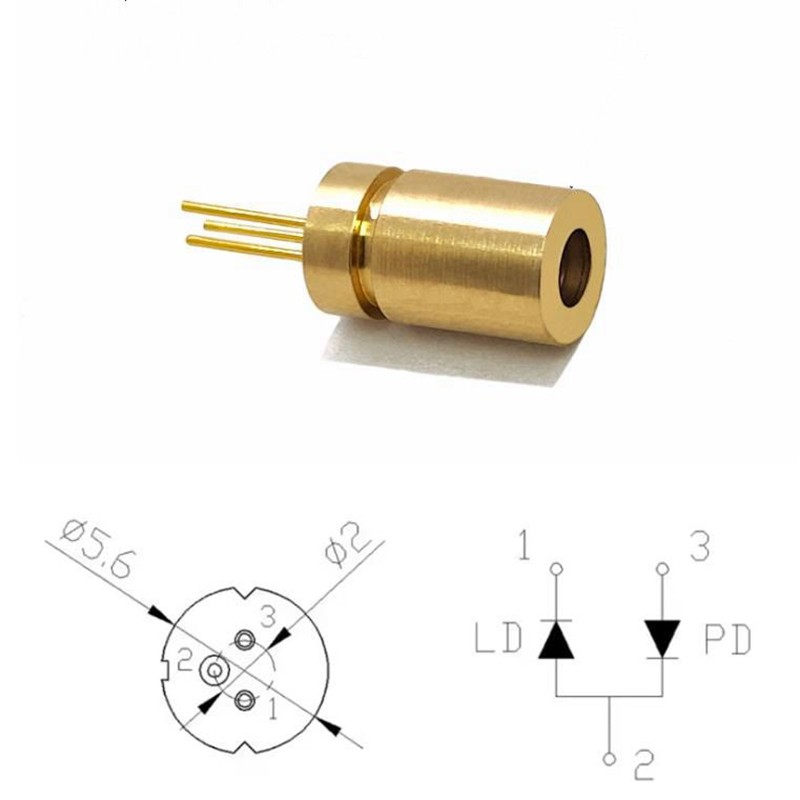

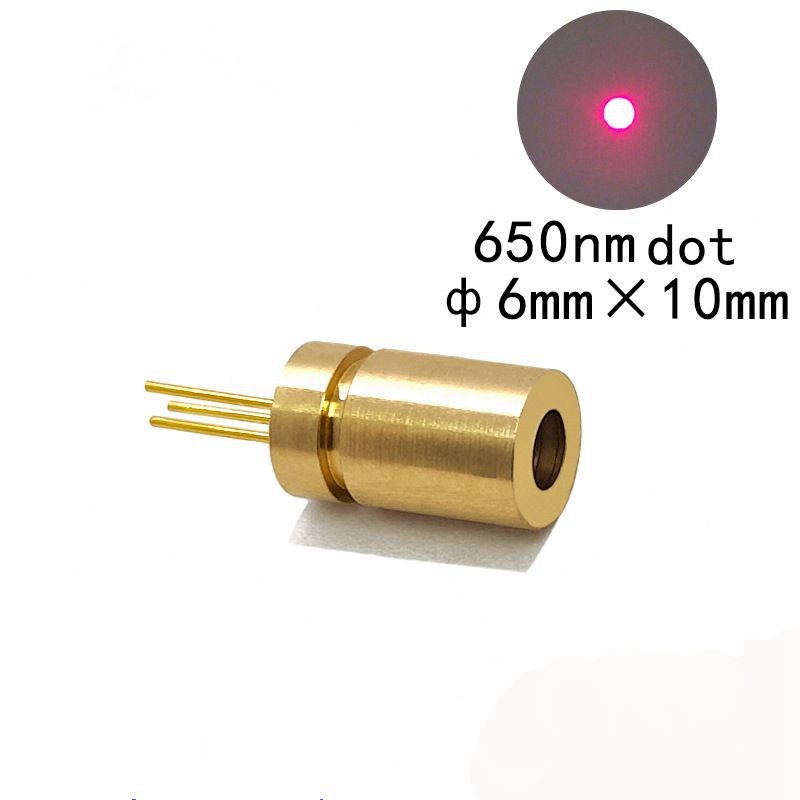

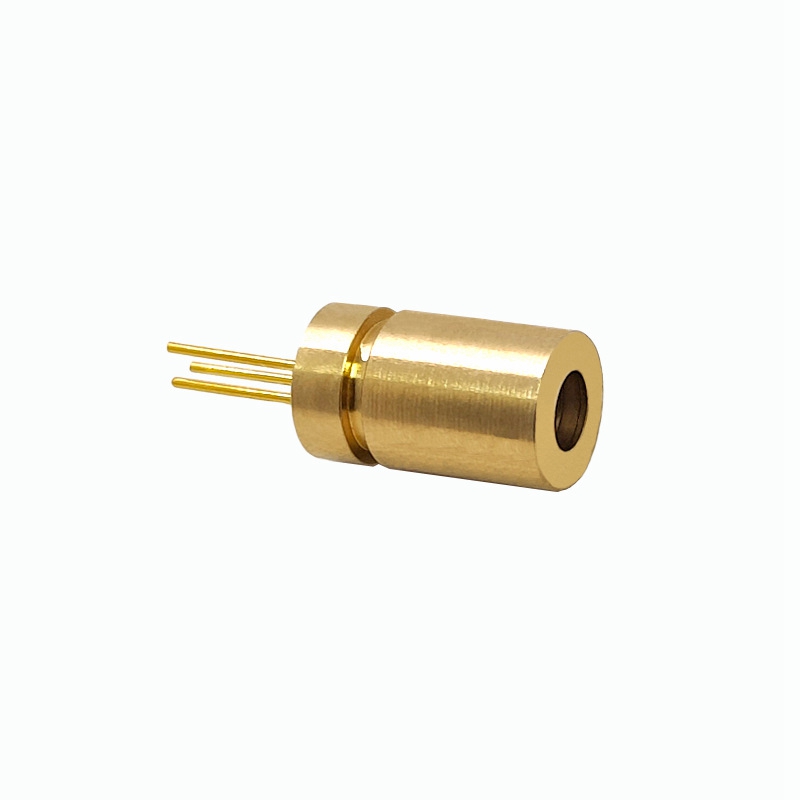

Specification: 6X10mm650nm5mW three legs
Installation mode: Insert
Wavelength: 650nm
Supply voltage: 2.1V~2.5V
Maximum output power: 5mW
Package size: Cylindrical (6.0mm diameter)
Number of ports: 1 port
Product series: Laser
Rated current: less than 20mA
Rated power: less than 5mW
Type: Laser module
Product certification: in line with RoHS standards
Accessory type: Laser head
Model: S626505D
Operating temperature: -10℃~+50℃
Product model :S626505D
Size: 6x10mm(other sizes can be customized)

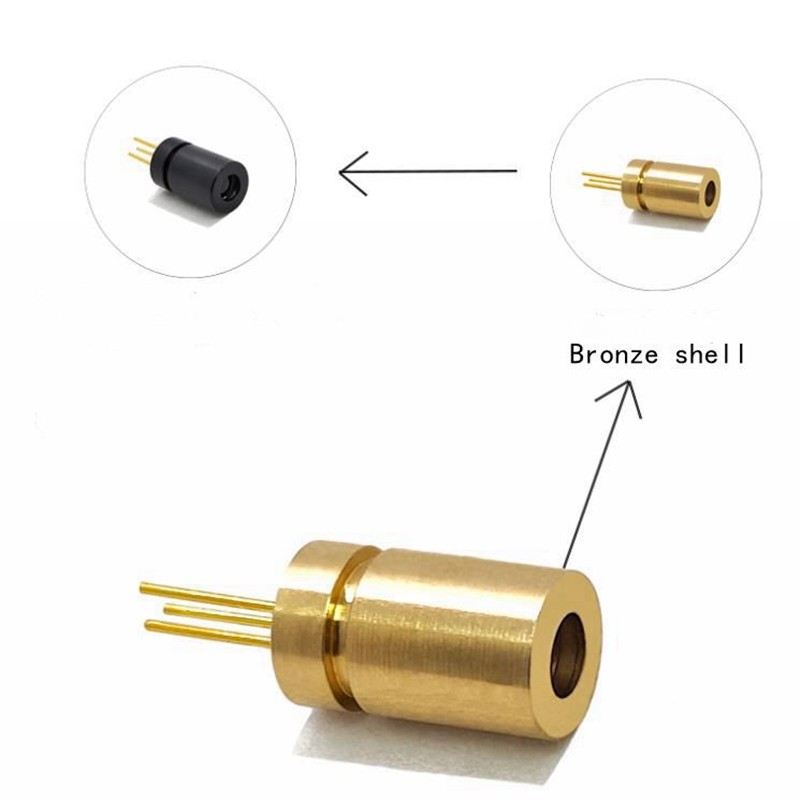

Material: Copper (all metal shell)
Surface treatment/color: copper shell (natural color, can be made black shell, surface insulation oxidation fog black treatment)
Output wavelength :650nm × 10nm(other wavelengths can be customized)
Exit pupil power :5mW(other power can be customized)
Range :<100 meters (indoor environment, laser will be affected by ambient light interference, distance is different)
Spot shape and size: spot light, oval (can be focused according to the distance required by guests, the best effect)
Focusing mode: Adjustable focus or fixed focus (optional, tacit rejection and recognition of adjustable focus)
Circuit control :APC line (This module does not have a driver, please contact the seller if you need a driver board）
Operating voltage :2.1~ 2.5 VDC
Working current :I<20mA
Operating temperature :-10℃~+50℃
Storage temperature :-20℃~+70℃
Service life: continuous output/use > 10000 hours
Security level :CLASS IIIA
Packaging content: One laser
Purpose:
It can be used in equipment, medical care instrument, military, security, stage lighting, tools,
U disk, mobile phone, projection teaching page turning pen,
temperature measurement (ranging) instrument, leveling instrument, line marking instrument,
level, indoor and outdoor decoration and other products.
