Weight: 500g
Processing customization: Yes
Item Number: Arrow effect
Model: Arrow effect
Type: Laser
Band range: visible light
Operation mode: continuous
Excitation mode: electric excitation type
Working material: semiconductor
Optical path: internal optical path
Output type: power type
Speed: High speed
Channel: Single channel
Output wavelength: 650 (nm)
14.6 degree Solid arrow effect red laser:
X direction: 14.6°
At 0.5 m, the length in the X direction is 128 mm
Y direction: 13.7°
At 0.5 m, the length in the Y direction is 120 mm

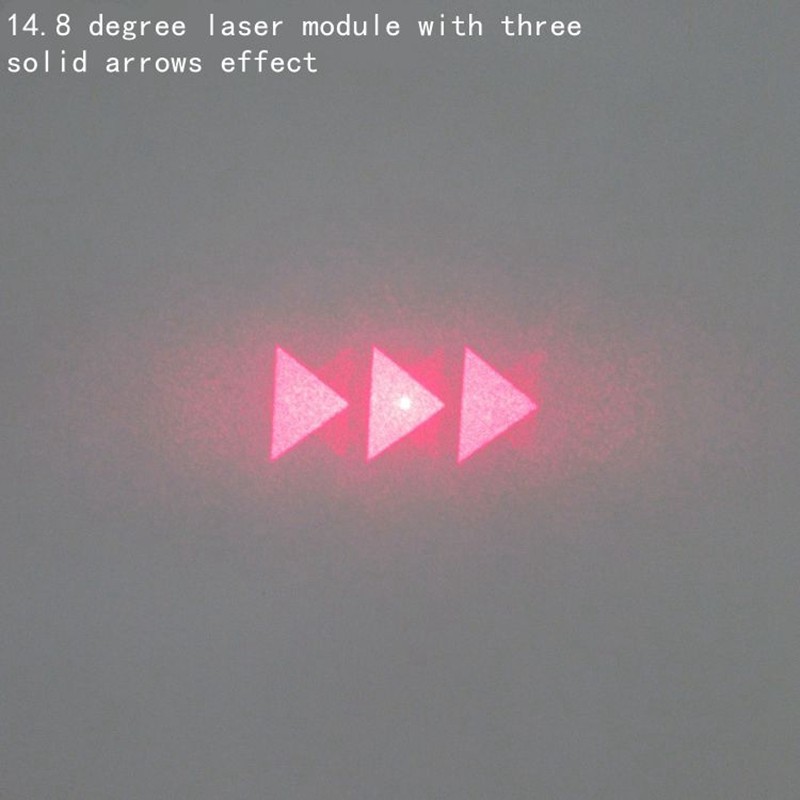

14.8 degree solid three arrow effect red laser:
X direction: 14.8°
At 0.5 m, the length in the X direction is 130 mm
Y direction: 6.6°
At 0.5 m, the length in the Y direction is 58 mm
Other parameters:
Output wavelength: 650nm (customizable)
Core power: 100mw (optional)
Operating voltage: DC 2.8V to 5.2V (customizable)
Working current: < 500mA

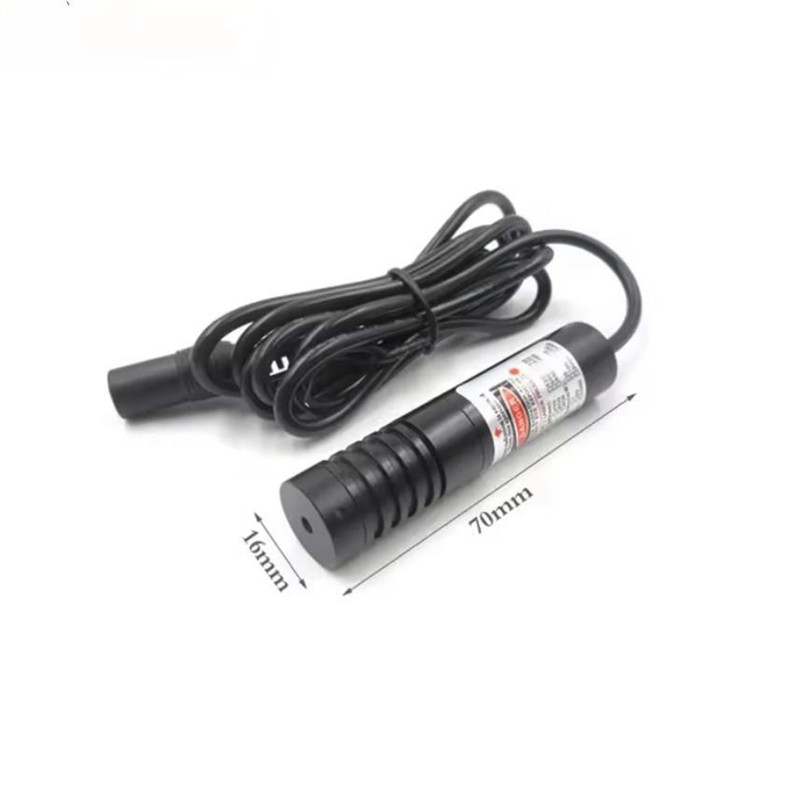

Dimensions: 16*70mm (customizable)
Optical lens: Grating plate (imported from Germany)
Advantages:
The light point is clear and bright, soft and not dazzling;
The light spot size can be adjusted to meet your different requirements;
Imported laser diode direct light, especially high stability, can work 24 hours a day;
Intelligent driver board with imported IC, wide range of power supply, other voltages can be customized;
The shell is aviation aluminum-plated insulating paint,
and the interior is filled with thermal silicone and AB glue,
which can fully dissipate heat and prevent shock and fall.
High temperature and corrosion resistant wire, suitable for all-weather environment;
Wavelength, power, wire length, working distance, spot effect, etc.
can be customized according to customer requirements, you want, here!
