Optical path: internal optical path
Speed: High speed
Channel: Channel
Output wavelength: 650 (nm)
9.6 degrees 2 7*7=98 dot matrix effect red laser (Model HW65098DZ100-16GD-9.6°-QYG009)
Divergence Angle: 9.6°
Number of points: 2 7*7=98 points
At 0.5 m, the outer frame length: 84 mm
At 0.5 m, point spacing: 14 mm
Installation height 0 m - 3 m can be used

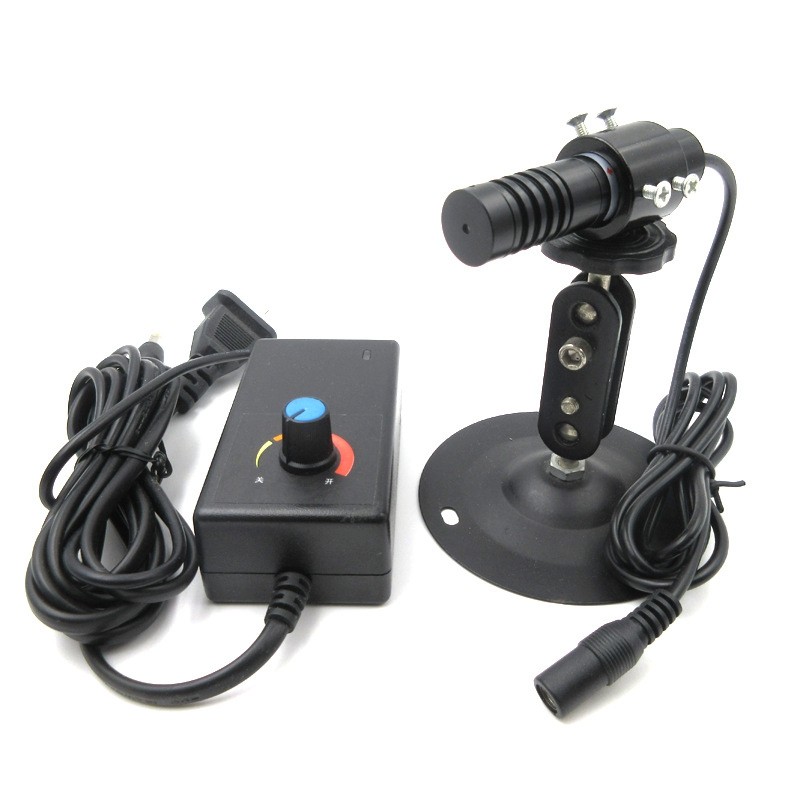

The whole set includes: laser head + stand +1-3V adjustable power supply
Other parameters:
Output wavelength: 650nm (customizable)
Core power: 100mw (optional)
Operating voltage: DC 2.8V to 5.2V (customizable)
Working current: < 500mA

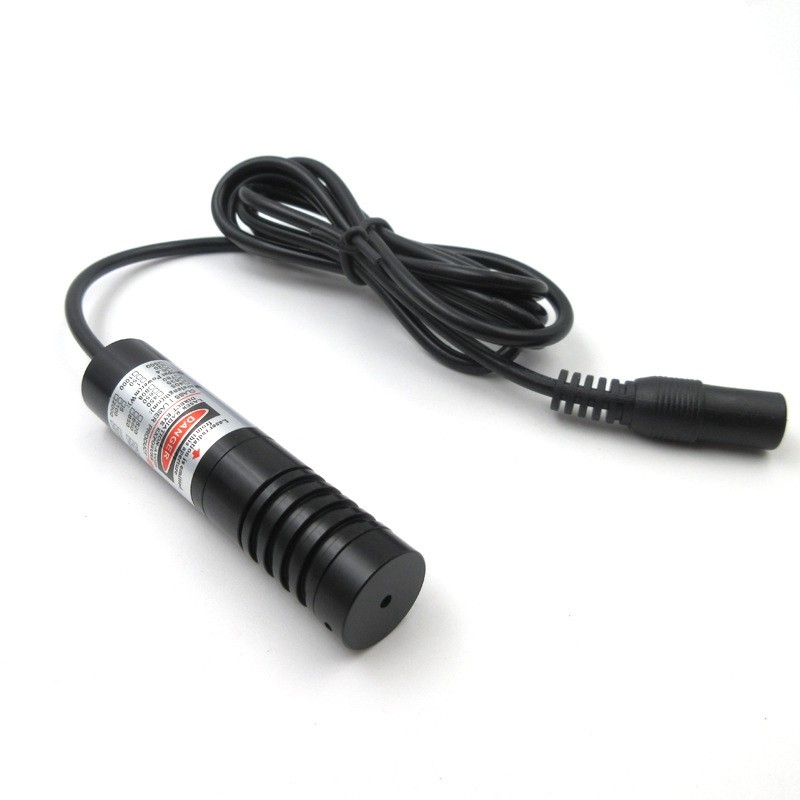

Dimensions: 16*70mm (customizable)
Optical lens: grating plate
Advantages:
◆ Light point is clear and bright, soft and not dazzling;
◆ The light spot size can be adjusted to meet your different requirements;
◆ Imported laser diode direct light, high stability, can work 24 hours a day;
◆ Intelligent driver board with imported IC, wide range of power supply, other voltages can be customized;
◆ The shell is aviation aluminum-plated insulating paint,
the interior is filled with thermal silicone and AB glue, which can fully dissipate heat and prevent shock and fall.
◆ High temperature and corrosion resistant wire, suitable for all-weather environment;
◆ Wavelength, power, wire length, working distance, spot effect, etc.
can be customized according to customer requirements, you want, here!
