Excitation mode: electric excitation type
Working material: semiconductor
Optical path: internal optical path
Output type: power type
Transmission signal: single power supply type
Speed: High speed
Channel: Single channel
Output wavelength: 650 (nm)
01)

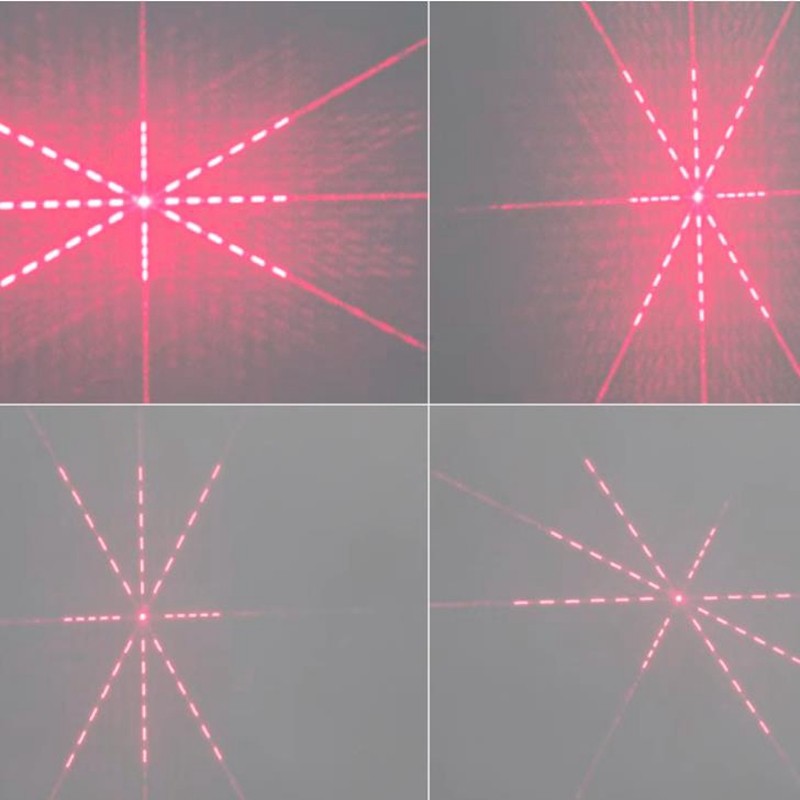

25.5 degree dotted line rice word effect red laser
HW650XXMZ100-16GD-25.5°-0049A
650 nm / 100 mw / 2.8-5 v
X direction: 25.5°
At 0.5 m, the length in the X direction is 226 mm
Y direction: 14.1°
At 0.5 m, the length in the Y direction is 124 mm
Diagonal direction: 28.9°
At 0.5 m, the length of the diagonal line is 258 mm
02)
42.6 degree dotted line rice word effect red laser
HW650XXMZ100 gd - 42.6-16 ° - 0049 - b
650 nm / 100 mw / 2.8-5 v
X direction: 42.6°
At 0.5 m, the length in the X direction is 390 mm
Y direction: 24.4°
At 0.5 m, the length in the Y direction is 216 mm
Diagonal direction: 49.8°
At 0.5 m, the length of the diagonal line is 464 mm
03)
43.2 degree solid line meter effect red laser HW650SXMZ100-16GD-43.2°-0048A
650 nm / 100 mw / 2.8-5 v
X direction: 43.2°
At 0.5 m, the length in the X direction is 396 mm
Y direction: 24.4°
At 0.5 m, the length in the Y direction is 216 mm
Diagonal direction: 48.5°
At 0.5 m, the length of the diagonal line is 450 mm
◆ Light is clear and bright, soft and not dazzling;
◆ Line width can be adjusted to meet your different requirements;
◆ Imported laser diode direct light, especially high stability, can work 24 hours a day;
◆ Intelligent driver board with imported IC, wide range of power supply, other voltages can be customized;
◆ The interior is filled with thermal silicone and AB rubber shell for aviation aluminum-plated insulating paint,
full heat dissipation, shock-proof, anti-fall and anti-static;
◆ High temperature and corrosion resistant wire, suitable for all-weather environment;
◆ Wavelength, power, wire length, working distance, spot effect, etc.
can be customized according to customer requirements, you want, here!
