Optical path: internal optical path
Speed: High speed
Channel: Single channel
13.2 degree word with 9 points effect red laser (model HW650YZ9D100-16GD-13.2°-QYG001) 1200 yuan/set
One word divergence Angle: 13.2°
At 0.5 m, the line length is 116 mm
At 0.5 m, the spacing of 9 points: 14.5 mm
Installation height 0 m - 5 m can be used

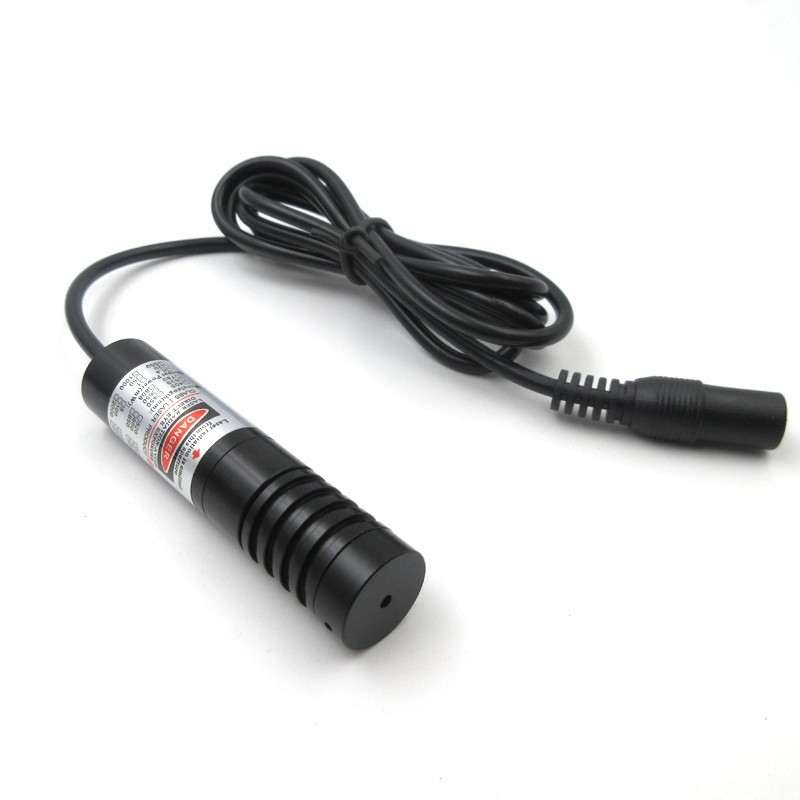

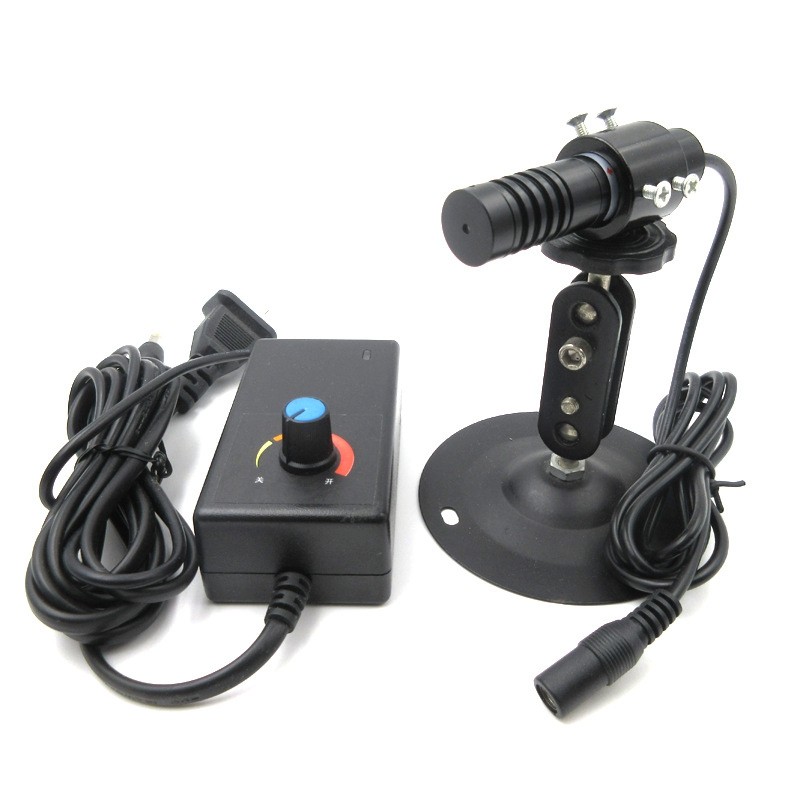

The whole set includes: laser head + stand +1-3V adjustable power supply
Other parameters:
Output wavelength: 650nm (customizable)
Core power: 100mw (optional)
Operating voltage: DC 2.8V to 5.2V (customizable)
Working current: < 500mA
Dimensions: 16*70mm (customizable)
Optical lens: grating plate
Advantages:
◆ Light is clear and bright, soft and not dazzling;
◆ Line width can be adjusted to meet your different requirements;
◆ Imported laser diode direct light, especially high stability, can work 24 hours a day;
◆ Intelligent driver board with imported IC, wide range of power supply, other voltages can be customized;
◆ The shell is aviation aluminum-plated insulating paint,
and the interior is filled with thermal silicone and AB glue,
which can fully dissipate heat and prevent shock and fall.
◆ High temperature and corrosion resistant wire, suitable for all-weather environment;
◆ Wavelength, power, wire length, working distance, spot effect, etc.
can be customized according to customer requirements, you want, here!
