Working material: semiconductor
Optical path: internal optical path
Output type: power type
Transmission signal: single power supply type
Speed: High speed
Channel: Single channel
Output wavelength: 650 (nm)

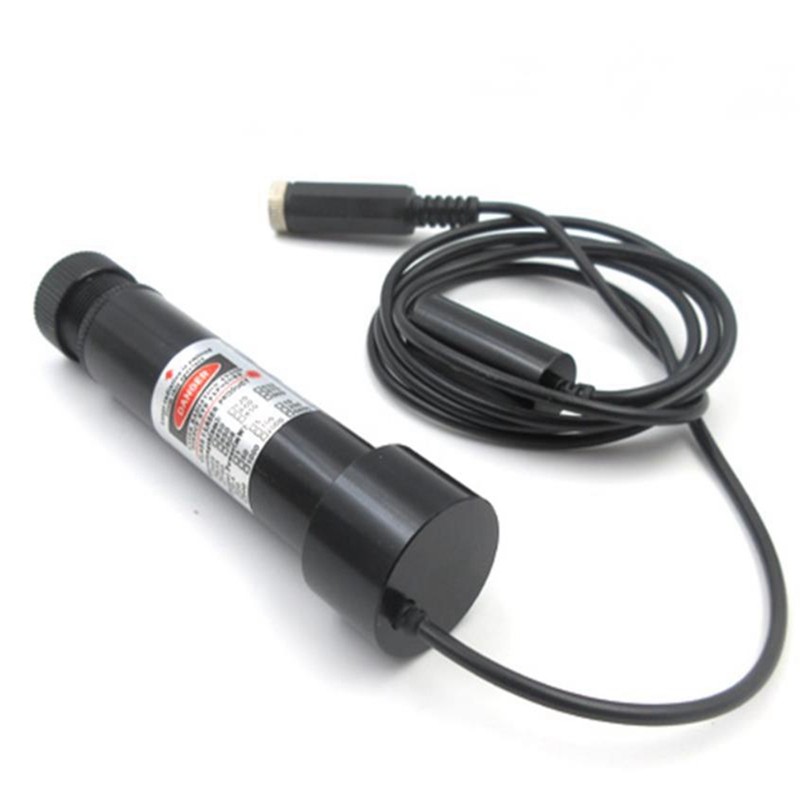

4.77 degrees 12 points circle with center point effect red laser
(Model HW65012YQZXD100-16GD-4.77°-391)
At 3 meters, the circle is 250 millimeters in diameter
9.95 degrees 12 point circle with center point effect red laser
(Model HW65012YQZXD100-16GD-9.95°-400)
At 3 meters, the circle is 522 millimeters in diameter
Installation height 0 m - 5 m can be used

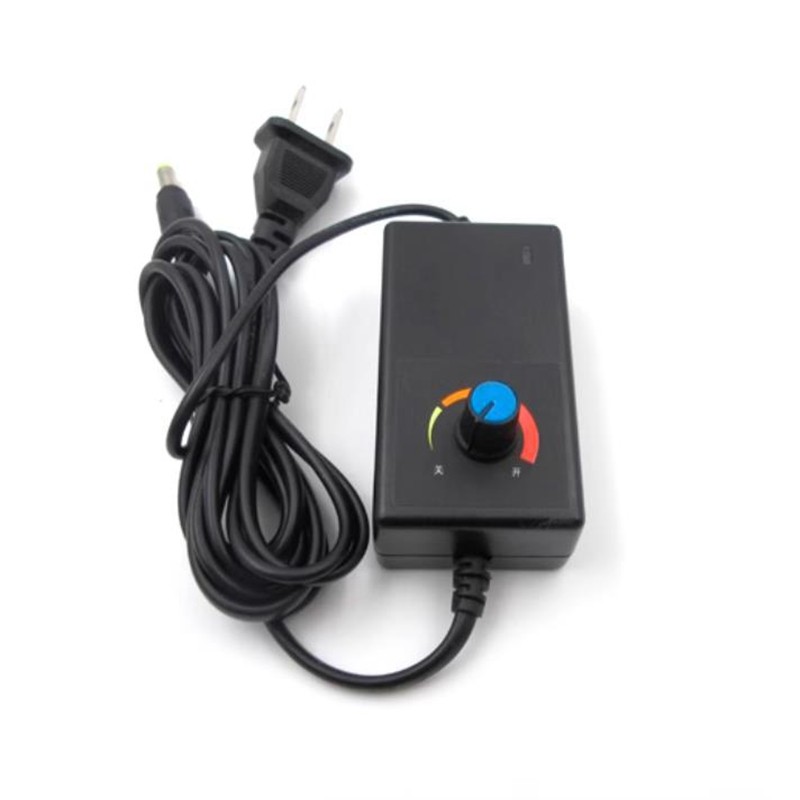

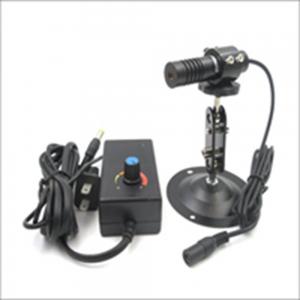

The whole set includes: laser head + stand +1-3V adjustable power supply
Other parameters:
Output wavelength: 650nm (customizable)
Core power: 100mw (optional)
Operating voltage: DC 2.8V to 5.2V (customizable)
Working current: < 500mA

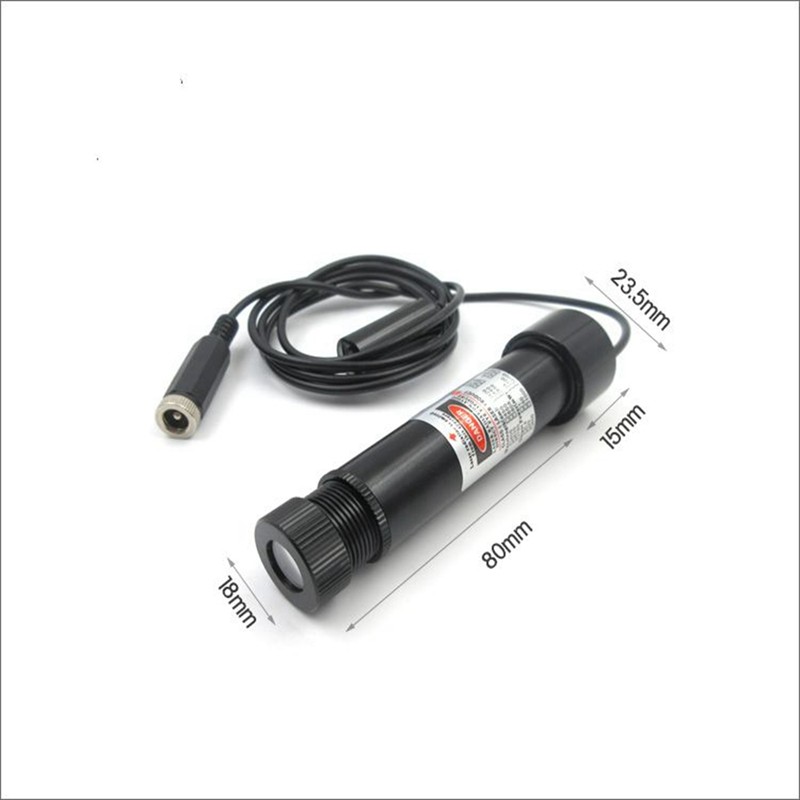

Dimensions: 16*70mm (customizable)
Optical lens: grating plate
Advantages:
◆ Light point is clear and bright, and soft and not dazzling;
◆ The light spot size can be adjusted to meet your different requirements;
◆ Imported laser diode direct light, especially high stability, can be open 24 hours a day;
◆ Intelligent driver board with imported IC, wide range of power supply,
other voltages can be customized;
◆ The shell is aviation aluminum-plated insulating paint,
and the interior is filled with thermal silicone and AB glue,
which can fully dissipate heat and prevent shock and fall.
◆ High temperature and corrosion resistant wire, suitable for all-weather environment;
◆ Wavelength, power, wire length, working distance, spot effect, etc.
can be customized according to customer requirements, you want, here!
