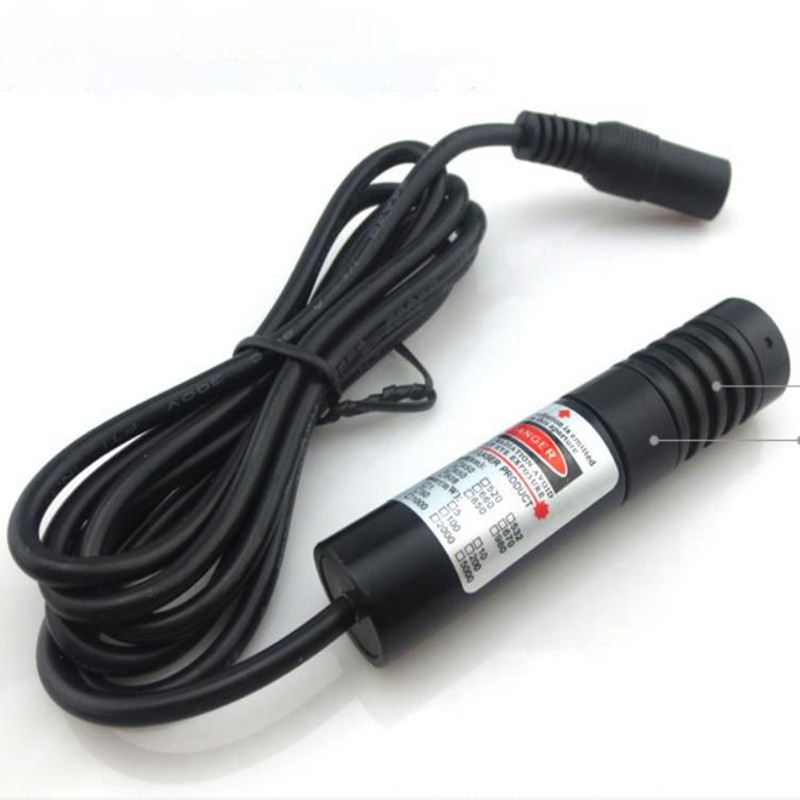

Nebula pattern red laser module focus pattern laser head

Specifications: HW650XY100-16GD
Supply voltage: 2.8-5.2V
Weight: 500g
Item number: HW650XY100-16GD
Model: HW650XY100-16GD
Wavelength: 650nm

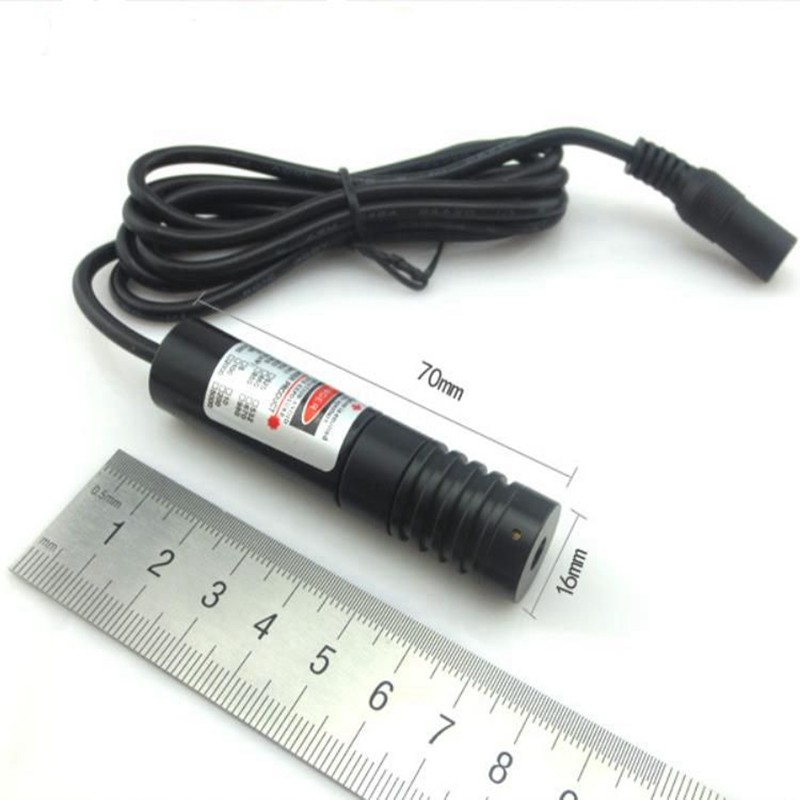

Size: Phi 16*70mm
Power: 100mW
Voltage: DC3-5V
Spot size: The installation distance is 2:1 to the diameter of the pattern
Advantages:
◆ Light is clear and bright, soft and not dazzling;
◆ Line width can be adjusted to meet your different requirements;
◆ Imported laser diode direct light, especially high stability, can work 24 hours a day;

◆ Intelligent driver board with imported IC, wide range of power supply,

other voltages can be customized;

◆ The shell is aviation aluminum-plated insulating paint,

and the interior is filled with thermal silicone and AB glue,

which can fully dissipate heat and prevent shock and fall.

◆ High temperature and corrosion resistant wire, suitable for all-weather environment;

◆ Wavelength, power, wire length, working distance, spot effect, etc.

can be customized according to customer requirements, you want, here!
