Optical lens: grating plate (imported from Germany) Lens Angle: 68 degrees /97 degrees optional
68 degree products, 50 cm: the distance between two points is about 6 cm
68 degree products, 100 cm: the distance between two points is about 12 cm
97 degree products, 50 cm: the distance between two points is about 12 cm
97 degree products, 100 cm: the distance between two points is about 24 cm
Output wavelength: 660nm/520nm/450nm (optional)
Power: Optional
Operating voltage: DC 2.8V to 5.2V (customizable)
Working current: < 500mA

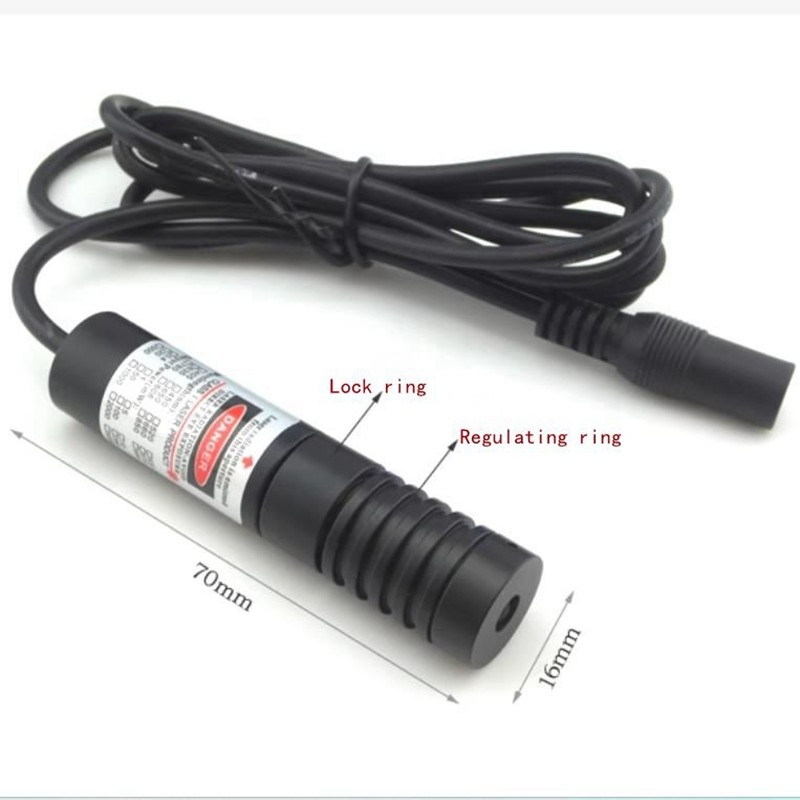

Default size: 16*70mm (customizable)
Available sizes: 9*26 10*15 10*30 10*35 12*30 12*32 12*35 12*40 12*50
16*50 16*60 16*70 18*50 18*55 18*100 20*50 20*65 20*110 22*50 22*65
22*110 25*50 25*65 25*110 26*50 26*65 26*110mm
Advantages:
1 Ultra-high brightness for indoor and outdoor use
2 The light point is clear and bright, soft and not dazzling
3 Light spot size can be adjusted to meet your different requirements
4 The shell is aviation aluminum-plated insulating paint,
which can not only fully heat dissipation, but also anti-shock, anti-fall and anti-static
5 Imported laser diode direct light stability is particularly high can be opened 24 hours a day
6 Intelligent driver board with imported IC can supply ultra-wide range of power
(other voltages can be customized)
7 High temperature and corrosion resistant DC plug
cable suitable for all-weather environment
8 wavelength power wire length working distance spot effect
can be customized according to customer requirements you want here!
The name of a product or commodity
Dot matrix effect red laser for tunnel positioning model HW660SDDZ300-16GD power 300mW
Dot matrix effect green laser HW520SDDZ100-16GD 100mW for tunnel positioning
Dot matrix effect blue laser HW450SDDZ100-16GD 100mW for tunnel positioning.
