Default size: 16 * 70mm (optional size: 22 * 110mm)
650nm/100mW/≤150mA
Dimensions: φ12*50mm (default)
Point: 0-1200 meters indoors during the day,
0-300 meters outdoors, 0-2000 meters in the dark environment

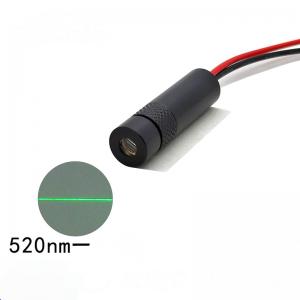

Line: The indoor environment can reach 10-12 meters,
and the installation height of a word line is 0 meters -- 8 meters
Cross line: The indoor environment can reach 10 meters
(the cross horizontal and vertical lines are 10 meters long)
Advantages:
Spot products: adjustable spot size, external mode, simple and convenient;Point-like products: the light point is clear and bright,
and soft and not dazzling;
The light spot size can be adjusted from 0.4 mm to a few centimeters;
Linear products: line width and thickness can be adjusted,
external adjustment, simple and convenient;
Linear products: the light is clear and bright, and soft and not dazzling;
Line width is adjustable from 0.4 mm to a few centimeters;
New tube core, Taiwan lens, can work 24 hours a day;Intelligent driver board with imported IC, wide range of power supply,
other voltages can be customized;
The shell is aviation aluminum-plated insulating paint, with heat sink,
and the interior is filled with heat dissipation silicone and AB glue,
full heat dissipation, shock resistance and fall resistance.
