  • quadrilateral red line marking positioning laser module
  • quadrilateral red line marking positioning laser module
  • quadrilateral red line marking positioning laser module
  • quadrilateral red line marking positioning laser module
quadrilateral red line marking positioning laser modulequadrilateral red line marking positioning laser modulequadrilateral red line marking positioning laser modulequadrilateral red line marking positioning laser module

quadrilateral red line marking positioning laser module

Weight: 500g
Processing customization: Yes
Item number: HW-LED-3W-HONG-CFK-1895BD
Type: Accessories components
Band range: visible light
Operation mode: continuous
Excitation mode: electric excitation type
3W Red Long Box LED light (HW-LED-3W-HONG-CFK-1895BD)
Product parameters:
1 meter: Length of the long box: about 43mm
1 meter: the width of the long box: about 27mm
1 meter: The line width of the long square box: about 2mm

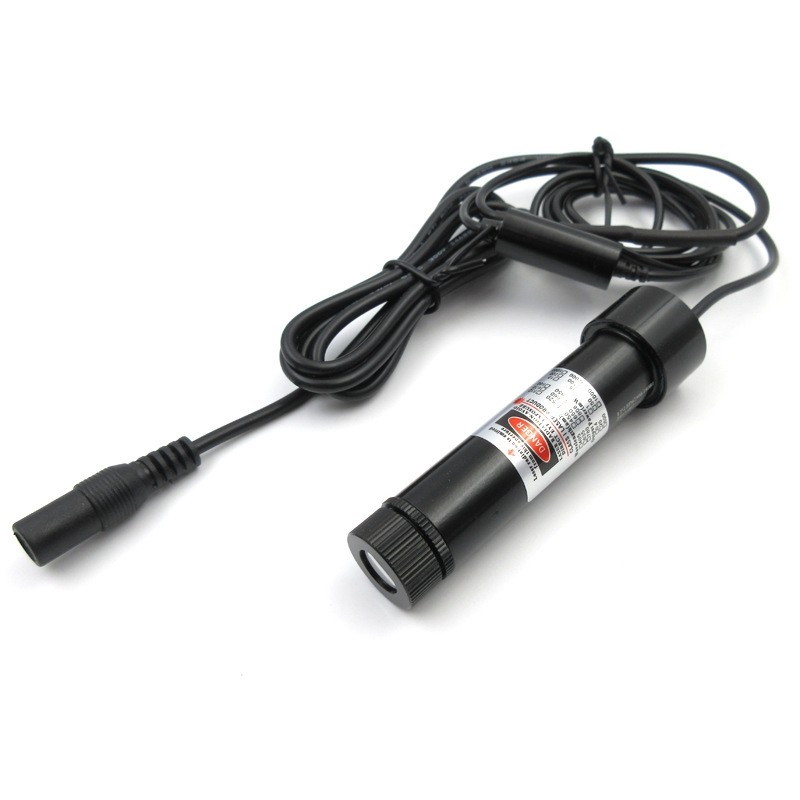

The whole set includes: LED lamp holder + universal stand +5V power supply
Working voltage: DC 3-5V
Working current: < 500mA
Dimensions: Front diameter: 18mm, front length: 80mm
Tail diameter: 23.5mm, tail length: 15mm
Total length: 95mm
Advantages:

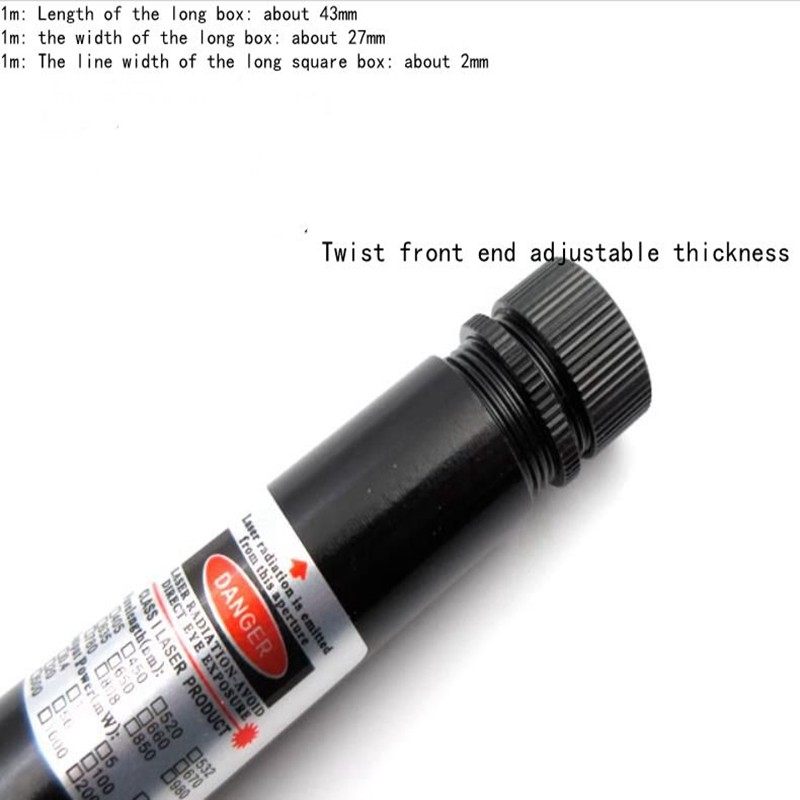

◆ New upgraded model, external adjustable structure, adjustable thickness;
◆ Light is clear and bright, soft and not dazzling;

◆ The original imported LED tube core and high-quality Taiwan lens,

especially high stability, can be open 24 hours a day;

◆ Intelligent driver board with imported IC,

wide range of power supply, other voltages can be customized;

◆ The interior is filled with thermal silicone and AB glue,

which can fully dissipate heat and resist shock and fall;

◆ The shell is aviation aluminum-plated insulating paint,

which can not only fully dissipate heat, but also anti-shock, anti-fall and anti-static;

◆ High temperature and corrosion resistant wire, suitable for all-weather environment;

◆ Wavelength, power, wire length, working distance, spot effect, etc.

can be customized according to customer requirements, you want, here!
