Commodity attribute:
Processing customization: Yes
Model: EL1200AX808-22GD
Type: Laser
Band range: Near infrared
Operation mode: continuous
Excitation mode: electric excitation type
Working material: semiconductor
Default size: 22*110mm (Optional size: 16*70mm)
Power: 1200mW (customizable)
Operating voltage: DC 9-25 (V) can be customized
Working current: ≤1000mA
Output type: power type
The whole set includes: laser head + support holder +1-12V adjustable power supply
Advantages:
◆ The wavelength of 808nm is near infrared light with strong concealment and good anti-interference ability

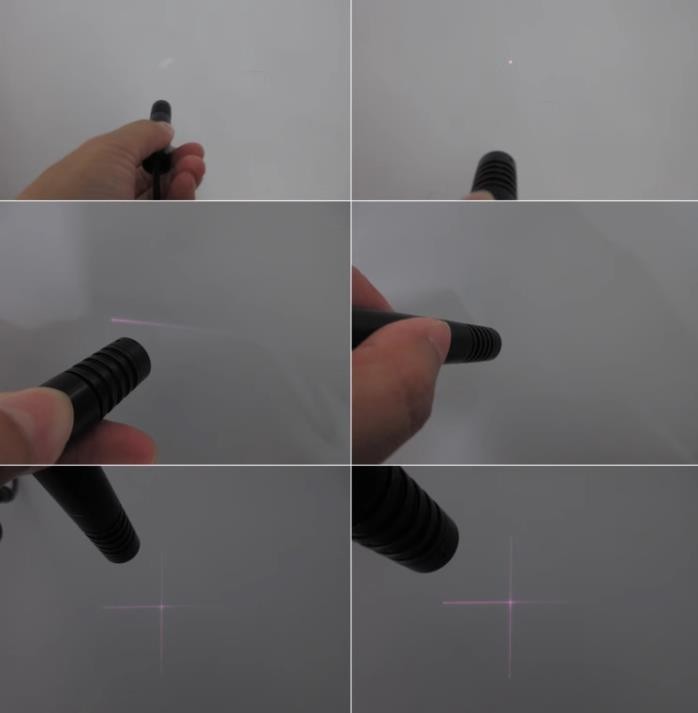

◆ The size of the light spot can be adjusted from 3mm to a few centimeters to meet your different requirements
◆ A word/cross lens Angle from 5 degrees -120 degrees optional line length you want as long as you want
◆ Line width can be adjusted from 3mm to a few centimeters to meet your different requirements
◆ The shell is aviation aluminum-plated insulating paint, which can fully dissipate heat and be shock-resistant, anti-falling and anti-static
◆ Germany imported laser diode direct luminous stability is particularly high
◆ Intelligent driver board with imported IC can supply a wide range of power (other voltages can be customized)
◆ High temperature and corrosion resistant DC plug wire suitable for all-weather environment
◆ Wavelength power wire length working distance spot effect can be customized according to customer requirements you want here!
