Type: Laser head
Band range: visible light
Operation mode: continuous
Working material: semiconductor
Optical path: internal optical path
Output type: power type
Transmission signal: single power supply type
Speed: High speed
Channel: Single channel
Output wavelength: 650 (nm)
Adjustment description: Rotate the adjustment ring to adjust
the thickness of the circular light after the lock can be gently moved without force
Note: The adjustment is the line width is not the size of the circle circle size
can only be changed by changing the installation height near small and broad
The name of a product or commodity:

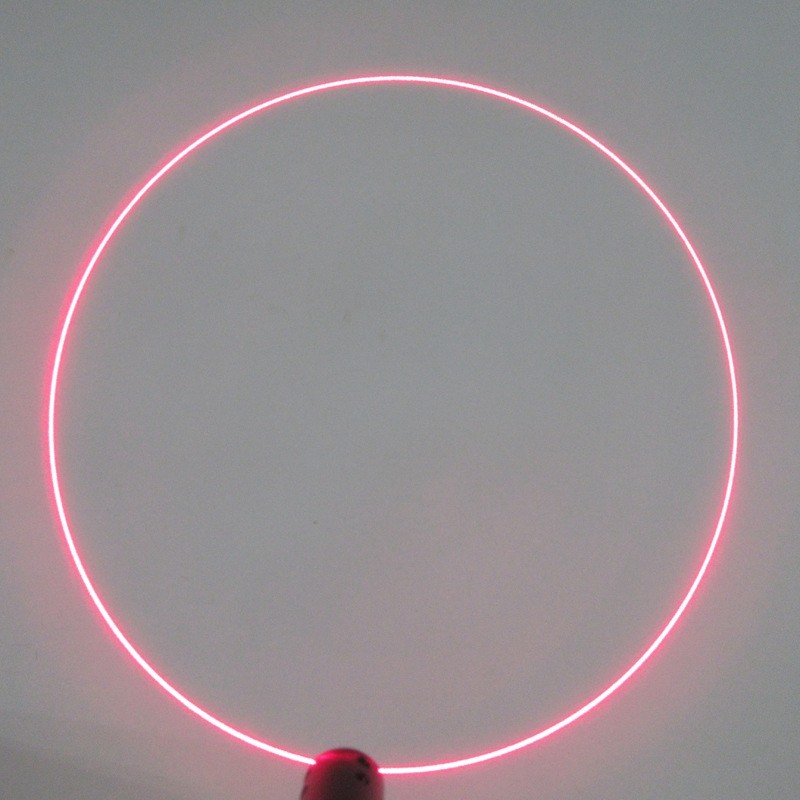

53 degree lens red large circle laser

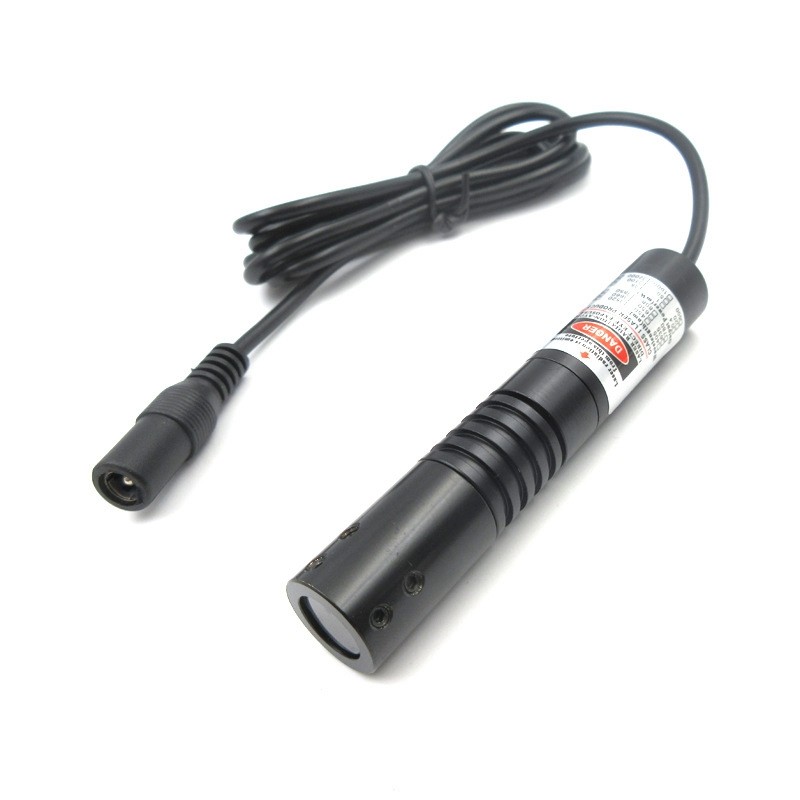

(Laser head +1-3V adjustable power supply + support)
HW650AY100-16GD-53 degrees
650nm/100mW

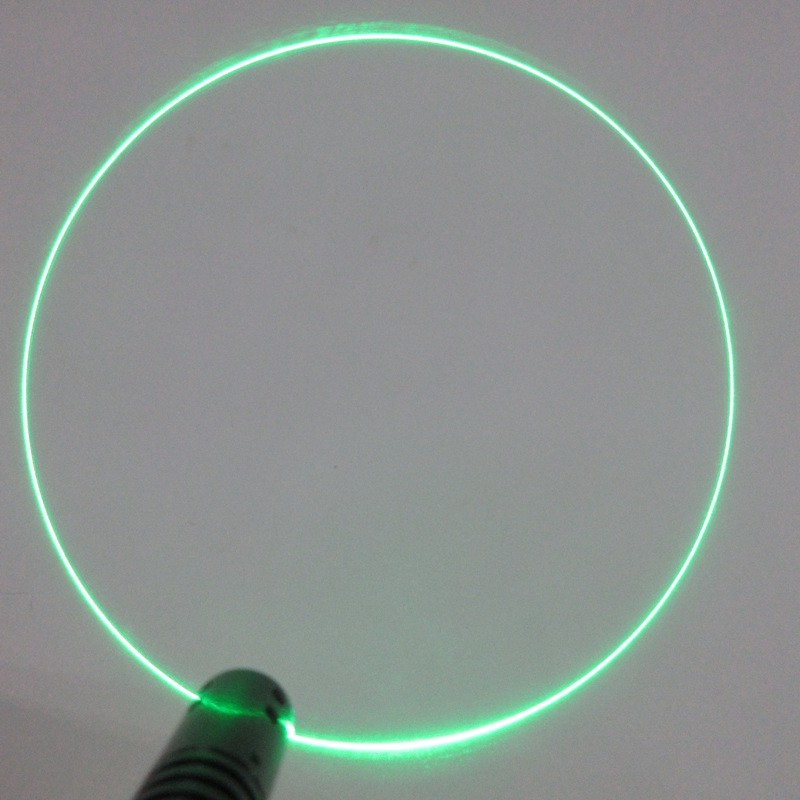

53 degree lens green large circle laser head +5V power supply + dimmer + stand)
HW520AY50-16GD-53 degrees
520nm/50mw

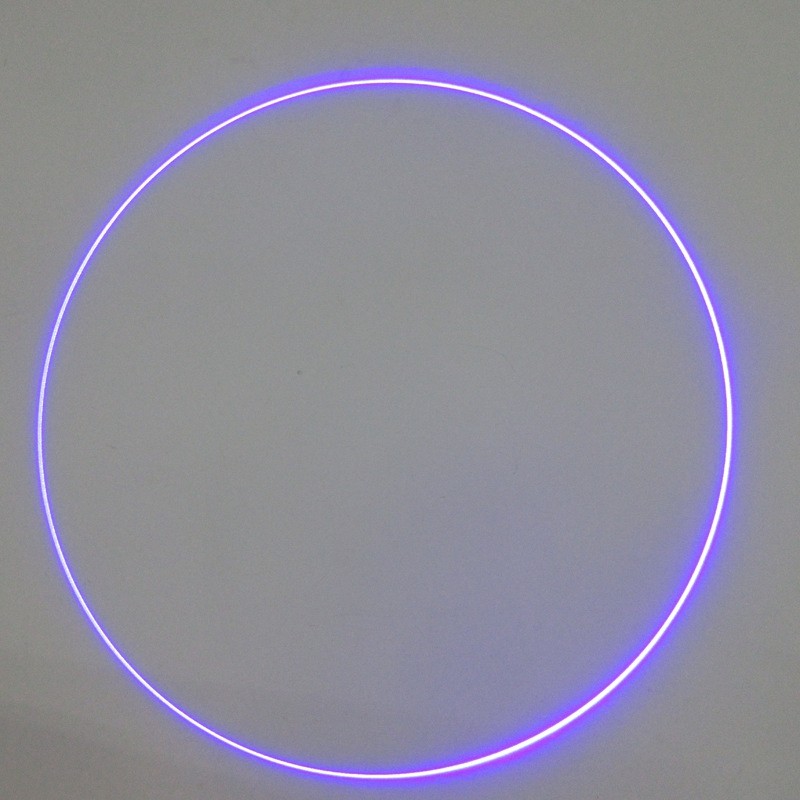

53 degree lens blue large circle laser
(Laser head +5V power supply + dimmer + stand)
HW450AY100-16GD-53 degrees
450nm/100mW
Circle size details
At 0.5 m the circle is 0.5 m in diameter
At 1 meter the circle is 1 meter in diameter
At 2 meters the circle is 2 meters in diameter
The size of the circle is 1:1 to the irradiation distance
