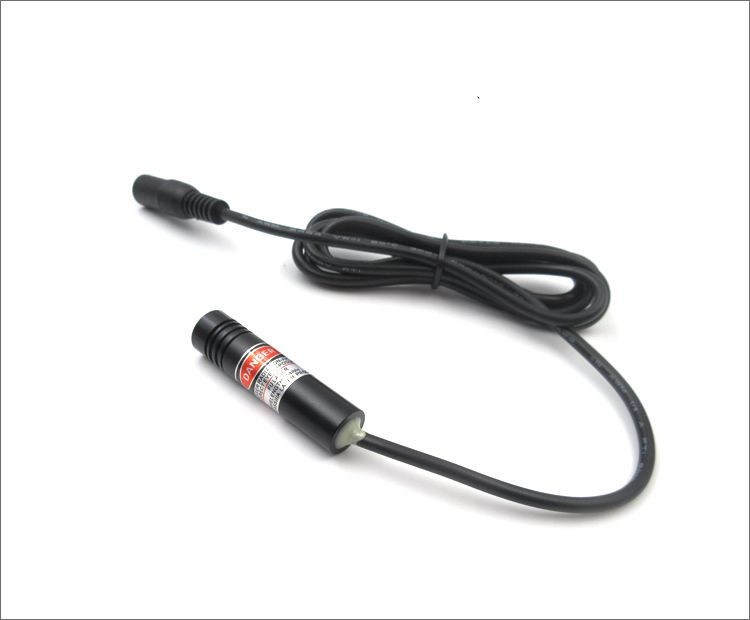

650nm 5mW wide voltage powered laser module

Point: 0-150 meters indoors during the day, 0-50 meters outdoors, 0-300 meters in the dark environment

Line: the indoor environment can reach 2.5 meters,

and the installation height of a single line is 0 meters -- 1.5 meters

Cross line: The indoor environment can reach 1.5 meters

(the cross horizontal and vertical lines are 1.5 meters long),

and the installation height of the word line is 0 meters -- 1.5 meters

Dimensions: φ12*50mm (default)

Point-like products: the light point is clear and bright,

and soft and not dazzling;

The light spot size can be adjusted from 0.4 mm to a few centimeters;

Linear products: line width and thickness can be adjusted,

external adjustment, simple and convenient;

Linear products: the light is clear and bright,

and soft and not dazzling; Line width is adjustable from 0.4 mm to a few centimeters;

Intelligent driver board with imported IC, wide range of power supply,

other voltages can be customized;

The shell is aviation aluminum-plated insulating paint,

with heat sink, and the interior is filled with heat dissipation silicone and AB glue,

full heat dissipation, shock resistance and fall resistance;
