Dimensions: φ12*50mm (default)

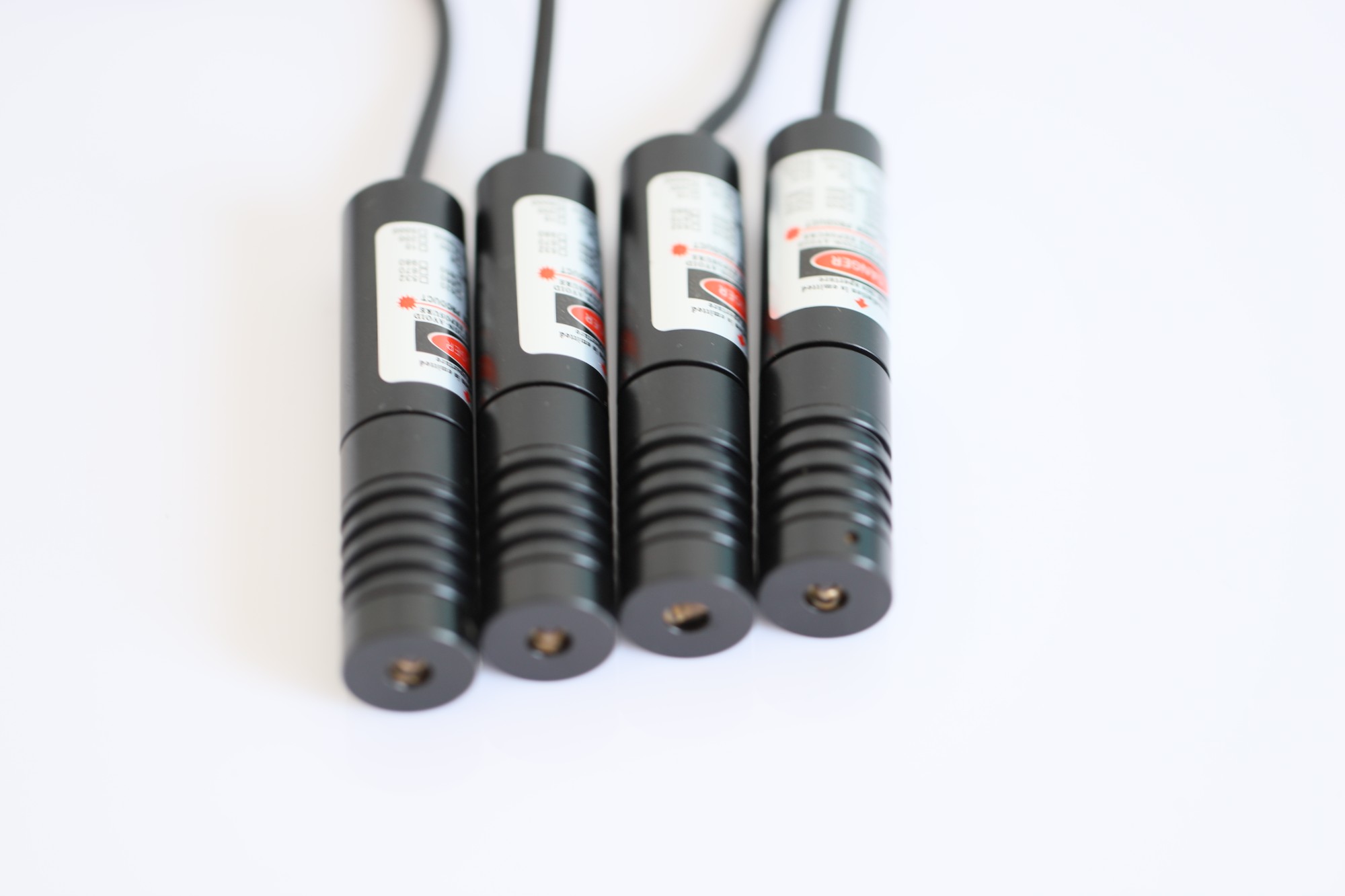

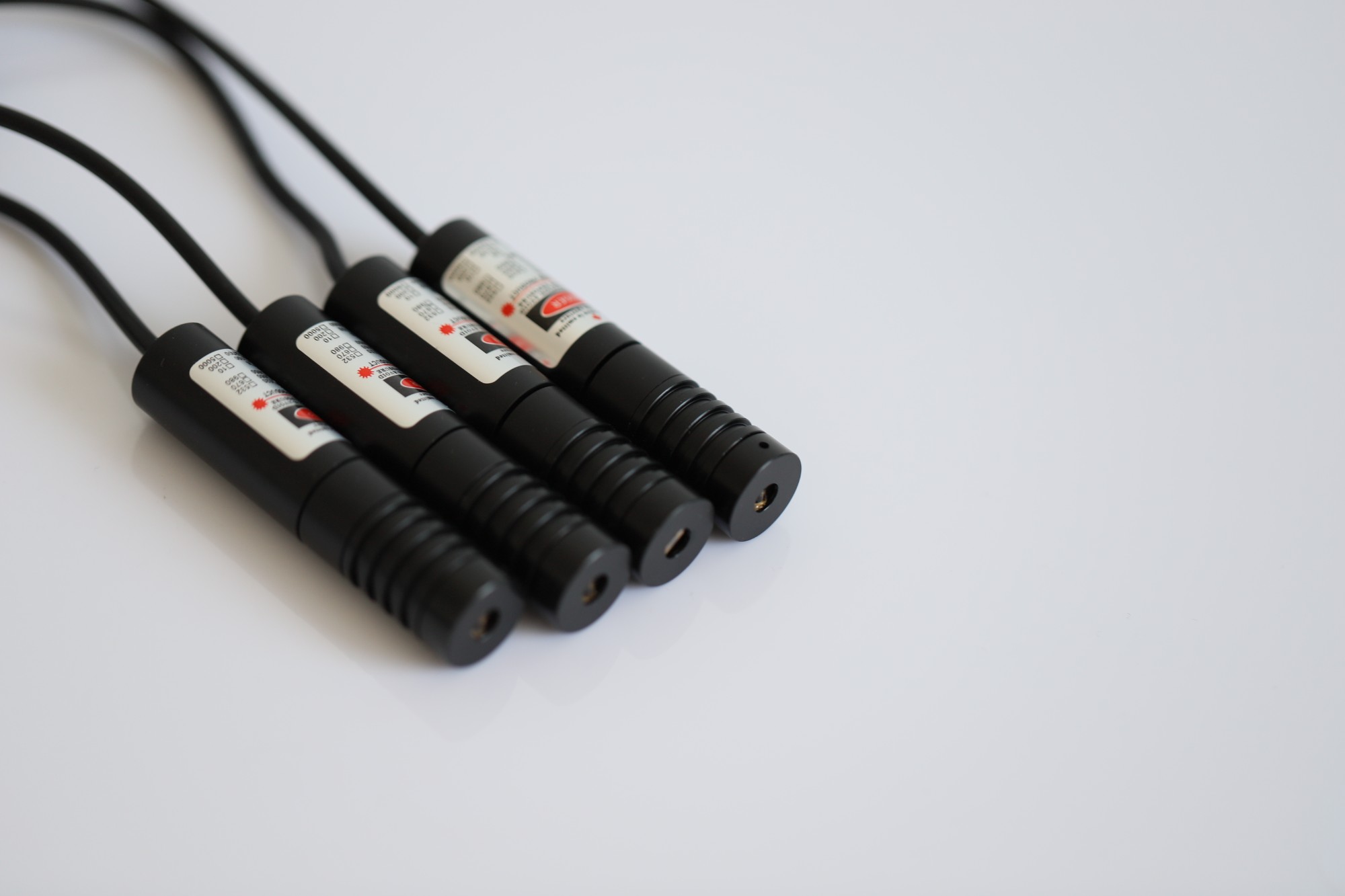

12V24V laser module
650nm/10mW/≤60mA
Working voltage: DC 6-25 (V), customizable
Point: 0-200 meters indoors during the day,
0-80 meters outdoors, 0-500 meters in the dark environment
Line: The indoor environment can reach 5 meters
a word line installation height 0 meters -- 3 meters
Cross line: The indoor environment can reach 3 meters
(the cross horizontal and vertical lines are 3 meters long),
and the installation height of the cross line is 0 meters -- 3 meters
Advantages:
Spot products: adjustable spot size, external mode, simple and convenient;
Point-like products: the light point is clear and bright, and soft and not dazzling;
The light spot size can be adjusted from 0.4 mm to a few centimeters;
Linear products: line width and thickness can be adjusted,
external adjustment, simple and convenient;
Linear products: the light is clear and bright, and soft and not dazzling;
Line width is adjustable from 0.4 mm to a few centimeters;
New tube core, Taiwan lens, can work 24 hours a day;
Intelligent driver board with imported IC, wide range of power supply,
other voltages can be customized;
The shell is aviation aluminum-plated insulating paint, with heat sink
and the interior is filled with heat dissipation silicone and AB glue,
full heat dissipation, shock resistance and fall resistance;
